Agfa Anapurna M 2500

August 29, 2013

Printer Properties:

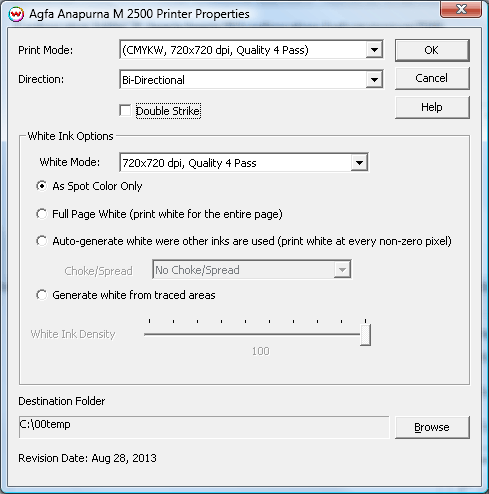

Pressing the Properties button next to the Printer Model window on the Imaging Configurations screen will launch the control panel for this printer.

This page allows you to select from the following parameters:

Print Mode: Select print mode. This includes the resolution, quality mode and inkset.
Direction: Select Unidirectional or Bidirectional printing.
Double Strike: Selecting this control doubles the amount of ink volume used when printing.
White Ink Options: Available when selecting CMYKW or CMYKLcLmW Print Modes.
- White Mode: Select print mode resolution for white (Same resolution as image or lesser resolution to increase speed).
- As Spot Color Only: White is not printed unless specified through spot color replacement.
- Full Page White: Prints white on the entire image.
- Auto-Generate White: Prints white on all non-zero pixels(marked areas). In addition, a "choke" or "spread" may be selected.
  Note: A choke shrinks the white plate in relation to the printed area.
  Note: A spread expands the white plate in relation to the printed area.
- Generate white from traced areas: The unmanaged color will be applied only to the traced areas that have been set using the Trace tab in the main SoftRIP interface.
- White Ink Density: Set percentage of white ink to be used. Can be set from 10% to 100%.
Destination Folder: Select the folder you would like the output files to be saved in.
