Agfa Anapurna Mw

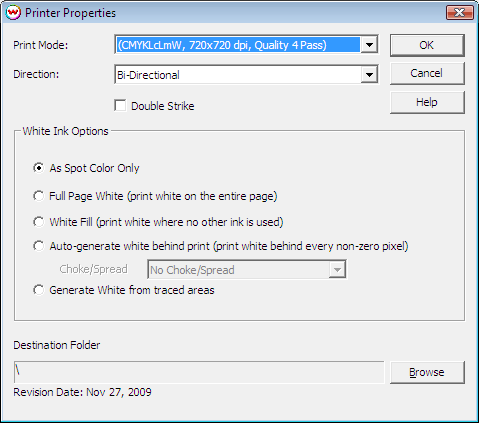

Pressing the Properties button next to the Printer Model window on the Imaging Configurations screen will launch the control panel for this printer.

This page allows you to select from the following parameters:

• Print Mode: Choose print mode. This includes the resolution, quality mode and inkset.
• Direction: Select Unidirectional or Bidirectional printing.
• Double Strike: Doubles the amount of ink used.
• White Ink Options: Only available when selected Print Mode is either CMYKW or CMYKLcLmW.
  • As Spot Color Only: White is not printed unless specified through spot color replacement.
  • Full Page White: Prints white on the entire image.
  • White Fill: Prints white where no other ink is used.
  • Auto-Generate White: Prints white on all non-zero pixels (marked areas). In addition, a "choke" or "spread" may be selected.
    Note: A choke shrinks the white plate in relation to the printed area.
    Note: A spread expands the white plate in relation to the printed area.
  • Auto-Generate inks from traced areas: The unmanaged color will be applied only to the traced areas that have been set using the Trace tab in the main Softrip interface.
• Destination Folder: Select the folder you would like the output files to be saved in.
