Epson Monna Lisa ML-8000 Help

July 16, 2021

Important Note:

This driver requires Epson printer components to be installed into the Wasatch SoftRIP installation folder prior to printing. A zip file of the components can be downloaded using the following link:

• Epson ML-8000 components

After saving the zip file from the link, extract the contents into the \wwripXX\ folder. (The folder is typically installed on the C: driver but may have been changed during the installation process, and the XX in the suggested path refers to the version of SoftRIP similar to "wwrip80".

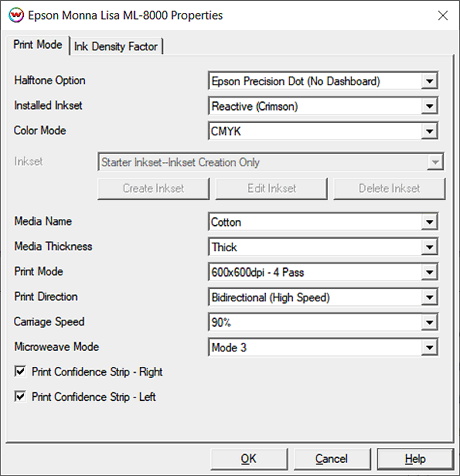

Print Mode:

• Halftone Option: Displays the halftone option "Epson Precision Dot (No Dashboard)".
• Installed Inkset: Set the type of ink installed in the printer. Current options include: Reactive (Crimson), Reactive (Magenta), Pigment, Disperse, Acid (Rubin), and Acid (Magenta).
• Color Mode: Choose to use CMYK, Reactive (Crimson Model), Reactive (Magenta Model), Disperse, Acid (Rubin Model), Acid (Magenta Model), or a Custom Inkset. Options depend on the Installed Inkset.
• Inkset: When Custom Inkset is selected in Color Mode, the following controls are available:
• Create Inkset: Create a new custom inkset.
• Edit Inkset: Edit an existing custom inkset.
• Delete Inkset: Delete an existing custom inkset.

NOTE: For more information on creating custom inksets, click here.


• Media Name: Choose the media loaded in the printer. Choices are: Cotton, Silk, Wool, Viscose Rayon, or use Others for media not listed.
• Media Thickness: Set if the media is Thin or Thick.
• Print Mode: Set the resolution and pass count to use for printing.
• Print Direction: Print in one direction (Unidirectional) for the best quality or in both directions (Bidirectional) for higher speed.
• Carriage Speed: Set the carriage(head) speed to 100%, or at the slower 90% option. The slower speed can help with quality issues.
• Microweave Mode: Choose from three modes of microweaving. Used to remove head banding.
• Print Confidence Strip - Left/Right: Prints a small strip of each color along the edge of the print. It can be useful to determine whether jets have clogged, and to keep unused heads running throughout a long print.

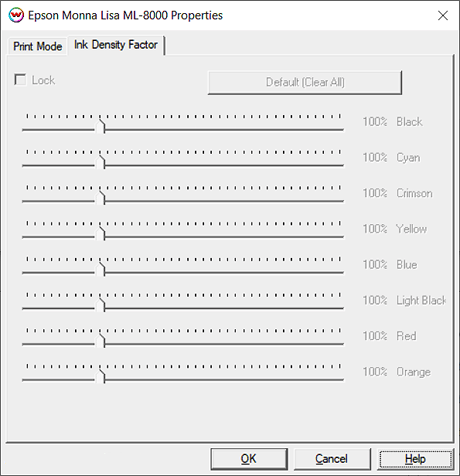

Ink Density Factor:

• Lock: This control will lock all slider controls below to allow for adjusting all the sliders at once.
• Default (Clear All): Reset ink reduction sliders to default positions.
• Ink Adjustment Sliders: Increase or reduce the amount of ink for each of the channels.
