Epson Stylus Pro 4880/7880/9880

• Epson Stylus Pro 4880
• Epson Stylus Pro 7880
• Epson Stylus Pro 9880

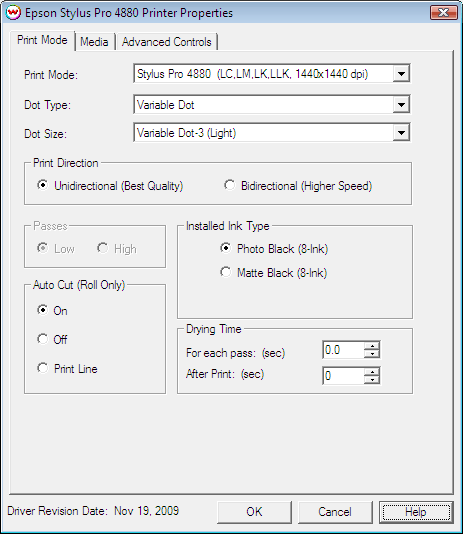

Print Mode

• Print Mode: Select the inks and printing resolution
• Dot Type: Select from Fixed or Variable dot types. When the print mode is changed this selection will default to the suggested dot type (usually variable)
• Dot Size: Select the size of the dot
  • Fixed modes: The following are the available dot sizes. Each of these dot sizes are available at all resolutions except for 2880x1440 and 2880x2880.
    • Fixed - 3.5pl
    • Fixed - 5.9pl
    • Fixed - 7pl
    • Fixed - 12.5pl
    • Fixed - 15pl
    • Fixed - 20.8pl
  • Variable modes: There are three choices for variable dot sizes available for all resolutions except 2880x1440 and 2880x2880. When the print mode is changed this selection will default to the suggested variable dot size for the selected resolution.
    • Variable Dot-1 (Dark)
    • Variable Dot-2 (Medium)
    • Variable Dot-3 (Light)
• Print Direction: Print in one direction for the best quality (Unidirectional) or in both directions for higher speed (Bidirectional)
• Passes: At a resolution of 1440x720 this control will be active. Choose "High" for a better quality and low for better speed.
• Ink Type:
  • Photo Black (8-color) supports the most general use and is best for glossy papers
  • Matte Black (8-color) Not recommended for glossy/semi-glossy media
• Auto Cut: Select whether to cut the image or print a line in order to cut by hand later on
• Drying Time:
  • Each Pass: Time Between Passes allows you to set a drying time between each pass. This is especially useful when printing on film.
  • After Print: Set a drying time after the print has completed. Cutting will commence after the set drying time.

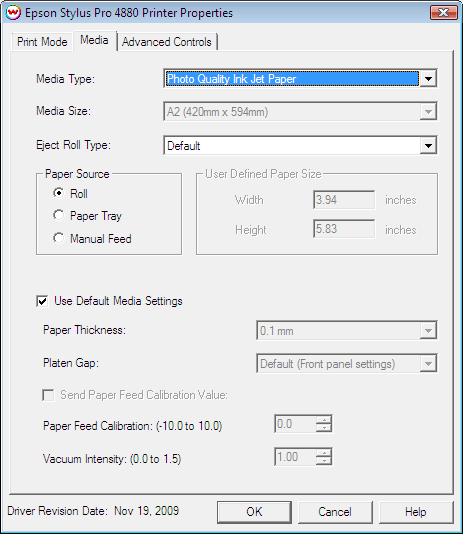

• Media Type: Choose from a list of approved Epson media. If your media is not in the list, choose the closest match. If there is nothing close, choose "Third Party Media" and the Media Settings will be available to fine tune the parameters
• Media Size: Choose from a list of media sizes. If nothing matches, choose "User Defined" and set the size in the "User Defined Paper Size" box.
• Eject Roll Type: Select which type of eject paper roller mechanism to use for job output. (Only available on the Epson 4880)
  • Sheet Starwheel: Lowers the starwheels, and raises the platen ribs to create a straight output path.
  • Roll Curled Starwheel: Lowers the starwheels, and lowers the platen ribs to relieve the curl associated with the roll feed.
  • Roll Normal: Raises the starwheels, and keeps the platen ribs lowered.
• Paper Source Select the feed source for the media. The paper tray selection does not exist on the 7800 and 9800.
• Use Default Media Settings Uncheck to have full control over media settings

  • Paper Thickness
  • Platen Gap
  • Send Paper Feed Calibration Check to send a value for a media feed calibration
  • Paper Feed Calibration
    To find the Paper Feed Calibration Value:
    • Print a line that is 1000 mm long in the paper feed direction
    • Measure the actual printed distance
    • Enter the difference in millimeters. For example, enter -5 if a measurement of the print is a value of 995 mm
  • Vacuum Intensity Sets the suction intensity of the vacuum with 1.0 equal to 100 percent.

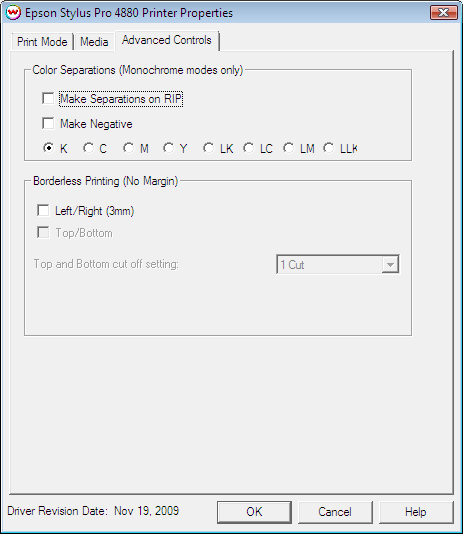

1. Marginless printing is only valid for the following media widths:
   • Epson Stylus Pro 4880
     (8", 8.25", 8.5", 10", 12", 13", 14", 16", 16.5", 17", 203.2/210/216/257/297/300/329/355.6/400/420/431.8mm)
   • Epson Stylus Pro 7880
     (10", 13", 16", 17", 24", 254/300/329/406.4/431.8/515/594/609.6mm)
   • Epson Stylus Pro 9880
     (10", 13", 16", 17", 24", 36", 254/300/329/406.4/431.8/515/594/609.6/728/914.4/1117.6mm)
2. User should make the horizontal width of the image 3mm wider on both the right and left edges (6mm total) of the image to avoid white area caused by media skew. These areas are printed off the edge of the paper on the absorbing pad on the platen. No automatic scaling or magnification is done by either SoftRIP or the printer.
   Note: You should have the paper width set to 6mm (.235") greater than the width of the paper. This may require first selecting the borderless printing option in the properties and secondly setting the paper width (or selecting Set Maximum Width) in the setup screen.
3. Top and Bottom cut off setting: Select the type of cut desired.
   1. 1-Cut: Performs a quick cut with minimum waste between pages, but it may be slightly off of horizontal.
   2. 2-Cut: Cuts the image perfectly, but wastes space between pages.

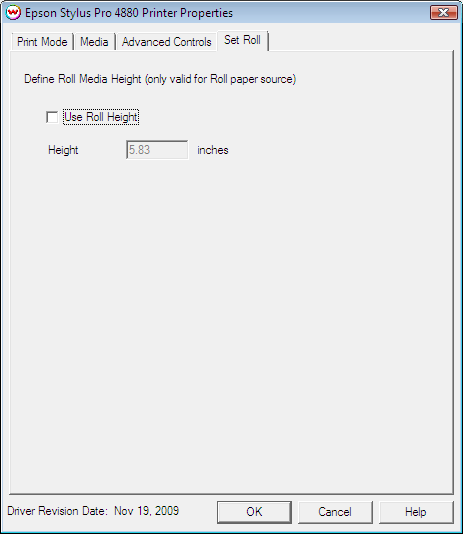

When you click on Set Roll, the following properties page will be displayed: (Special registration codes required)

Note: The Printer Margin setting on the front panel of the Epson must be set to anything other than default for this feature to work. (3 mm is recommended)

The Set Roll tab allows you to specify a fixed page height while outputting to a roll device.

• Use Roll Height: Specify if you would like to set a fixed page height for a roll fed device.
  • Height: Specify the output page height for this control.
