HP DesignJet T610/T1100

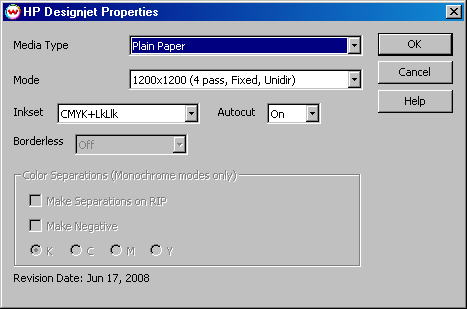

If you press the Properties button for this device, the window shown below will launch. In this window, you can select the various settings available for this printer.

• Media Type: Select the media type that matches (or is closest to) the media loaded on the printer. This setting must match the media settings on the front panel of the printer.
• Mode: This controls the number of passes, dot size, and print direction of the printer. A high setting will take longer to print than a lower setting and a higher setting will have better quality than a lower setting.
• Inkset: Select the inks to be used. CMYK+LkLlk, CMYK+Lk, CMYK, or Mono modes. Certain inksets may only be available with certain media types.
• Autocut: If enabled, this will cut the media at the end of each print.
• Borderless Printing: For certain media types, it is possible to enable borderless printing. This will print a job from edge to edge with no margins.
• Color Separations: These controls are the same as those of other printers, and are only available if a monochrome mode has been selected as the Inkset.
  • Separations on RIP: This will cause the RIP to separate the image into CMYK plates.
  • Make Negative: This inverts monochrome images when printed.
  • KCMY: This allows you to print monochrome images to any of the heads in the printer. This is especially useful to eliminate overuse of a single printhead when printing only monochrome.
