La Meccanica R500

Feb 16, 2015

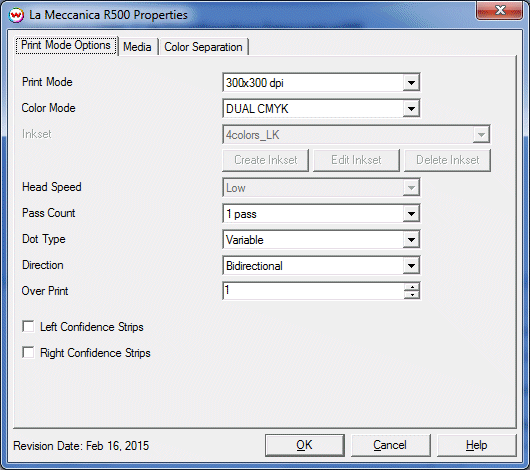

The Print mode controls are located on the tab below.

Create Inkset: Create a new custom inkset. Available when a previously created custom inkset is selected.
Edit Inkset: Edit an existing custom inkset. Available when a previously created custom inkset is selected.
Delete Inkset: Delete an existing custom inkset. Available when a previously created custom inkset is selected.

Head Speed: Controls the 'High Speed' option available in certain resolutions.
Pass Count: Allows you to specify the number of passes the head will make over a particular line. A higher pass count has a better quality but a slower print speed.
Dot Type: Various dot sizes can be selected. Not all dot sizes are available for every resolution.
Direction: The head printing direction can be unidirectional or bidirectional.
Over Print: The number of times each area is printed over. A setting of 2 would double the ink.
Left Confidence Strips: Print a confidence strip on the left hand margin.
Right Confidence Strips: Print a confidence strip on the right hand margin.

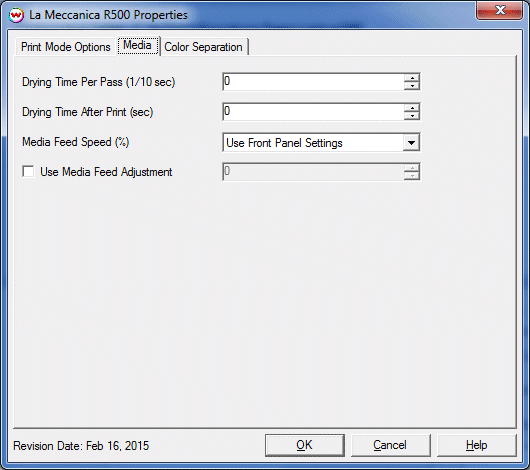

Drying Time Per Pass: Specify dry time between each pass. (in 1/10 seconds)
Drying Time After Print (sec): Specify dry time after printing is complete in seconds.
Media Feed Speed (%): Specify the media feed speed as a percentage.
Use Media Feed Adjustment: If enabled, an adjustment amount can be specified. Refer to Mimaki's User Manual for details regarding the unit of measure.

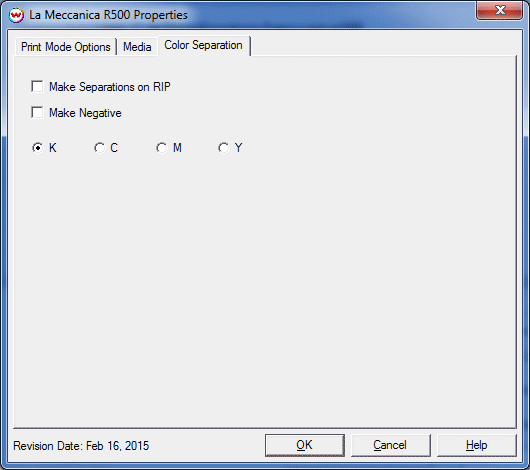

The Color Separation controls are located on the tab below.

The Color Separation controls are only available if a monochrome mode has been selected on the Print Mode tab.

Separations on RIP: This will cause the RIP to separate the image into CMYK plates.
Make Negative: This inverts monochrome images when printed.
K, C, M, Y: This allows you to print monochrome images to any of the printheads. This is especially useful to eliminate overuse of a single printhead when printing only monochrome.
