Reggiani ReNOIR Help Page

October 1, 2010

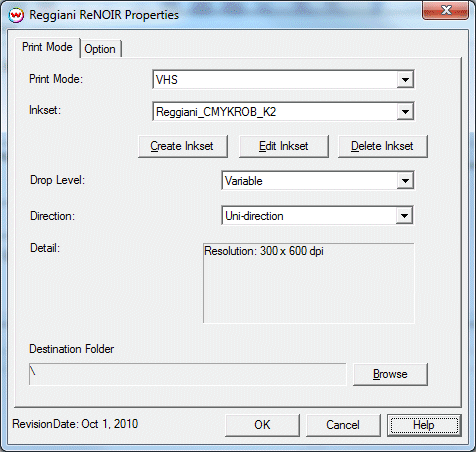

Print Mode:

To launch the printer properties for this driver, choose 'Setup' from the 'Print' menu, click on the 'Edit' button, and then click on 'Properties'.

• Print Mode: Select the print mode.
• Inkset: Select the custom inkset, only used when Color Mode is set to 'Custom Inkset'.
• Drop Level: Select the type of dot, fixed or variable.
• Direction: Select Unidirectional or Bidirectional.
• Destination Folder: This control sets the location for output files.

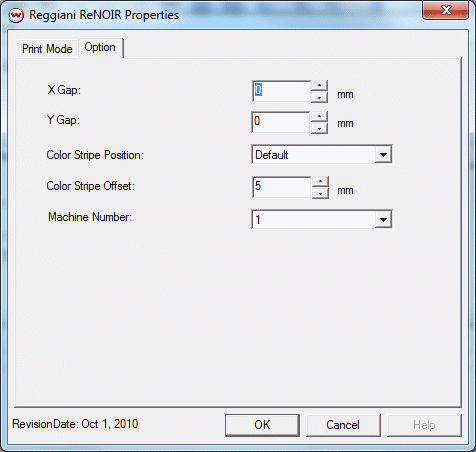

Option:

• X Gap: Select the X-axis gap in millimeters.
• Y Gap: Select the Y-axis gap in millimeters.
• Color Stripe Position: Select where Color Stripe will be printed.
• Color Stripe Offset: Select the offset from media edge for Color Stripe.
• Machine Number: Select the machine number, only in use with multiple Reggiani printers.
