TechJet TJ-2036PRO-RY Help Page

Print Mode:

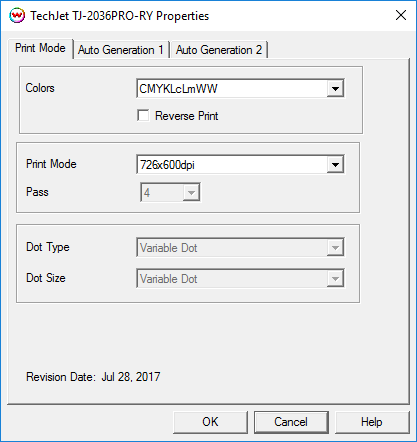

Pressing the Properties button next to the Printer Model window on the Imaging Configurations screen will launch the control panel for this printer.

• Colors: Choose the inkset desired for printing.
• Reverse Print: When enabled it will instruct the printer to first lay down color, followed by white.
• Print Mode: Select the desired resolution to use.
• Pass: Select pass count. Will vary depending on Print Mode selected.
• Dot Type: Choose to print with Variable or Fixed Dot.
• Dot Size: Choose to print with the Small, Medium, or Large dot set.

Auto-Generation:

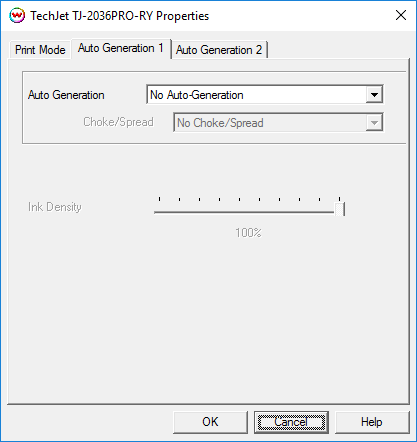

When a white mode is selected, the following tab will be displayed:

• Auto-Generation:
• No Auto-Generation: The unmanaged ink channel is not printed unless specified through a spot color replacement.
• Auto-Generate ink from traced areas: The unmanaged ink channel will be applied only to the traced areas that have been created using the Trace tab in the main SoftRIP interface.
• Auto-Generate the entire page: Prints the unmanaged ink channel on the entire image.
• Auto-Generate where other inks are used: Prints the unmanaged ink channel on all non-zero pixels(marked areas). In addition, a "choke" or "spread" may be applied to the area.
        Note: A choke shrinks the unmanaged channel in relation to the printed area.
        Note: A spread expands the unmanaged channel in relation to the printed area.
• Ink Density: Set percentage of ink to be used for the unmanaged ink channel. Can be set from 10% to 100%.
