Binterjet BJET RJ-3200RUV Help

Important notes and Instructions

• This driver supports 'Print to file' or 'Direct Streaming' to the printer using the Printer Manager software.
• The Printer Manager software must be installed prior to printing.
  The print manager software can be downloaded here:        Download
• Both the Printer Manager software and SoftRIP must run in an Administrator level. To make sure they run at the Administrator level every time, once the Printer Manager software has been installed, do the following:
  • From the Windows Desktop, right-click on the newly created Printer Manager shortcut and select Properties.
  • Click on the Compatibility tab and in 'Privilege Level' section, put a check in the box for 'Run this program as an administrator'.
  • Click OK to save the changes.
  • Create a desktop shortcut for SoftRIP.
  • Right-click on the SoftRIP desktop shortcut and select Properties.
  • Click on the Compatibility tab and in 'Privilege Level' section, put a check in the box for 'Run this program as an administrator'.
  • Click OK to save the changes.

Use the newly created desktop shortcut to launch SoftRIP to insure running in administrator level.


Once the Printer Manager software has been installed, plug in the printer and allow Windows to install the printer USB driver. Then launch the Printer Manager software so that SoftRIP can stream data to the printer.

SoftRIP only supports one Binterjet RJ-3200, RJ-3200PSD, RJ-3200RUV, or MooToom MT-RJ19B2 printer per install. However, SoftRIP also supports adding one of the following printers to the same install:

• iGO-3200
• iGO-XDY
• iGO-XKC
• iGO-XTS
• iGO-XUV
• MooToom MT-D16
• MooToom MT-P16

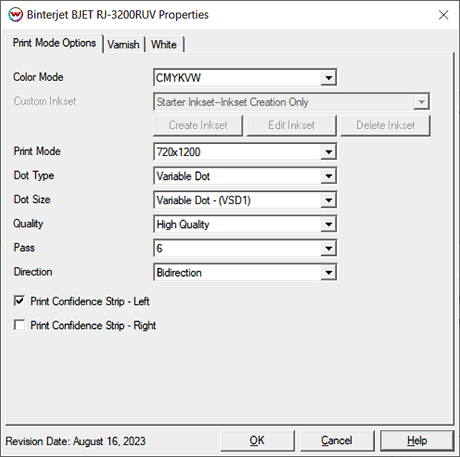

Print Mode Options:

• Color Mode: Choose inkset for printing. Options are CMYK, CMYKW, CMYKVW, and Custom. When Custom Inkset is selected, the following controls are available:


• Create Inkset: Create a new custom inkset.
• Edit Inkset: Edit an existing custom inkset.
• Delete Inkset: Delete an existing custom inkset.


• Print Mode: Select the printing resolution.
• Dot Type: Select either Fixed Dot or Variable Dot for the printing.
• Dot Size: Choose the dot size for printing. Not available in all Print Modes. NOTE: Variable VSD1 is a larger dot selection than Variable VSD3.
• Quality: Choose to print with quality or speed. Not available in all Print Modes.
• Pass: Select the number of passes for the selected Print Mode. Not available in all Print Modes.
• Direction: Choose to print in unidirectional (one direction) or bidirectional (both directions).


• Print Confidence Strip: Enable to have a thin vertical stripe of each color printed down the side of the print. Left and/or right strips can be printed.

Auto Generation (Varnish / White):

• Information about the Auto-Generation options can be found HERE
