CalcompGS DTF-4805 Help

Important notes and Instructions

Connecting To The Printer Software For Direct Streaming:
The Printer Manager software must be installed prior to printing.
The print manager software can be downloaded here:        Download

The printer manager software must run at an Administrator level. To make sure it runs at the Administrator level, every time, do the following:
• From the Windows Desktop, right-click on the newly created Printer Manager shortcut and select Properties.
• Click on the Compatibility tab and in 'Privilege Level' section, put a check in the box for 'Run this program as an administrator'.
• Click OK to save the changes.

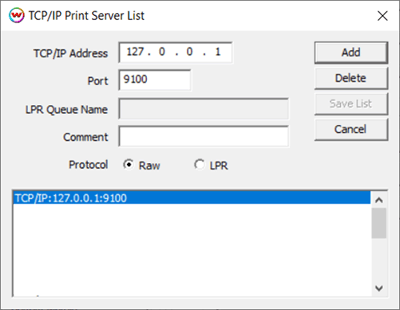

To send print jobs directly to the print manager, SoftRIP needs to have the localhost IP address added to the TCP/IP list then selected as the physical connection. Click on the two blue gears in the upper right of the SoftRIP window, or go to the Print menu and select Setup, then locate the 'TCP/IP List' button to the right of the Physical Connection drop-down menu, click and Add '127.0.0.1' to the list then Save the list. See the example below. Be sure to select this choice for the Physical Connection.

Print Mode Options

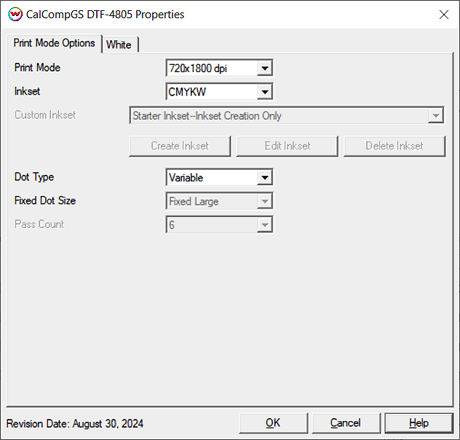

If you click on the Properties button next to the Printer Model window in the Imaging Configuration screen, the following control panel for this printer will be displayed:

• Print Mode: Choose the print resolution.
• Inkset: Select the inkset that the printer will use during printing. Available options include: CMYK, CMYKW, and the Custom Inkset.
• Custom Inkset: The Custom Inkset control is currently not available.
• Dot Type: Choose to use a Variable Dot or a Fixed Dot for printing.
• Fixed Dot Size: When the Dot Type is set to Fixed Dot, the size of the dot used can be selected. Available options include: Small, Medium, and Large.
• Pass Count: Displays the number of passes used during printing.

Auto Generation:

• Information about the Auto-Generation options can be found HERE
