d.gen Artrix H8

July 26, 2017

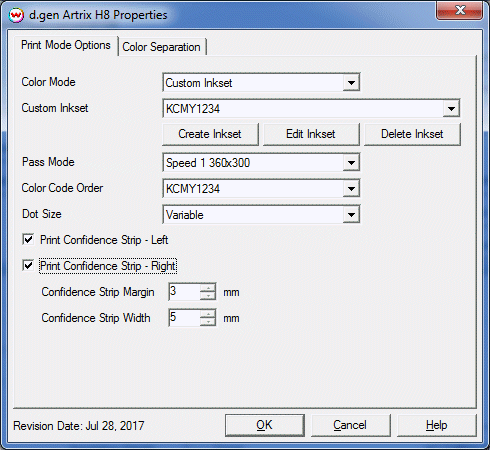

Print Mode Options:

To launch the printer properties for this driver, choose 'Setup' from the 'Print' menu, then click on the 'Edit' button, and then click on 'Properties'.

• Color Mode: Select the desired inkset.
• Custom Inkset: Select the correct inkset, create, edit, and or delete inksets.
• Pass Mode: Select the desired pass mode.
• Color Code Order: Select the inkset configured on the printer's firmware. This control is only active when the Color Mode is set to Custom Inkset.
• Dot Size: Select the dot type, Variable or Fixed, and size.
• Print Confidence Strip - Left/Right: Enable printing of confidence strip at the left edge, right edge, or both.
• Confidence Strip Margin: Set the margin between the confidence strip and the edge of the media
• Confidence Strip Width: Set the width of each channel in the confidence strip.

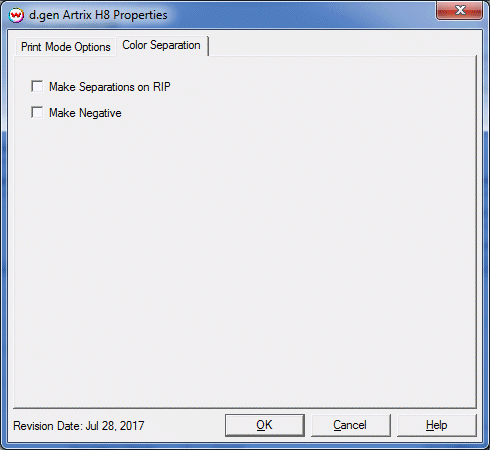

Color Separations:

The color separations controls are located on the second tab.

The Color Separations controls are the same as those of other printers, and are only available if a monochrome mode has been selected on the Print Mode tab.

• Make Separations on RIP: This will cause the RIP to separate the image into CMYK plates.
• Make Negative: This inverts monochrome images when printed.
