d.gen Teleios Grande G5 Help Page

Feb 18, 2014

Support for the Teleios Grande G5 is available as an optional add-on for Wasatch

Remember that color reproduction is controlled by ICC color profiles, and not by Wasatch software. We have not been able to get these printers into our lab, and therefore we have not been able create any color profiles for them. You should contact your dealer for further support with ICC color profiles, or arrange to produce your own.

Due to lack of access to this printer, Wasatch's service department cannot provide the same level of support that we provide for most other printers. Please rely on your dealer for support of this device.

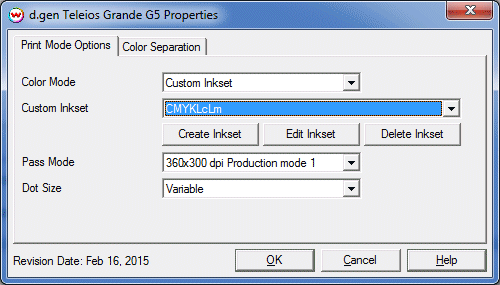

Print Mode Options:

To launch the printer properties for this driver, choose 'Setup' from the 'Print' menu, then click on the 'Edit' button, and then click on 'Properties'.

Color Mode: Select the desired inkset.
Custom Inkset: Select either a previously created custom inkset, from the drop-down menu, or choose the Starter Inkset to begin creating a new custom inkset.

Create Inkset: Create a new custom inkset.
Edit Inkset: Edit an existing custom inkset.
Delete Inkset: Delete an existing custom inkset.

Pass Mode: Select the desired pass mode and print resolution.
Dot Size: Select the dot type, Variable or Fixed.

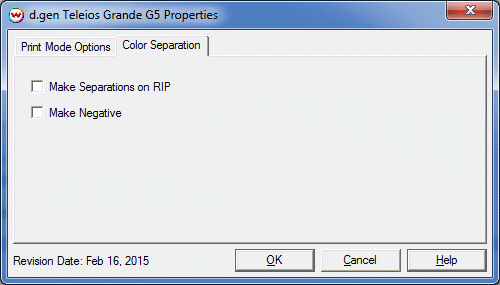

Color Separations:

The color separations controls are located on the second tab.

The Color Separations controls are the same as those of other printers, and are only available if a monochrome mode has been selected on the Print Mode tab.

Make Separations on RIP: This will cause the RIP to separate the image into CMYK plates.
Make Negative: This inverts monochrome images when printed.
