d.gen Teleios XL Help Page

July 9, 2013

Support for the Teleios XL is available as an optional add-on for Wasatch

Remember that color reproduction is controlled by ICC color profiles, and not by Wasatch software. We have not been able to get these printers into our lab, and therefore we have not been able to create any color profiles for them. You should contact your dealer for further support with ICC color profiles, or arrange to produce your own.

Because of lack of access to this printer, Wasatch's service department cannot provide the same level of support that we provide for most other printers. Please rely on your dealer for support of this device.

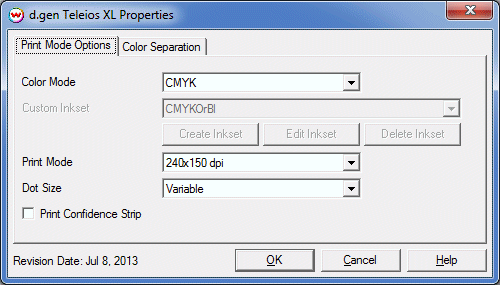

Print Mode Options:

To launch the printer properties for this driver, choose 'Setup' from the 'Print' menu, then click on the 'Edit' button, and then click on 'Properties'.

Color Mode: Select the desired inkset.
Custom Inkset: Select the correct inkset, create, edit, and or delete inksets.
Print Mode: Select the desired resolution.
Dot Size: Select the dot type, Variable or Fixed.
Print Confidence Strip: Select to print a confidence strip.

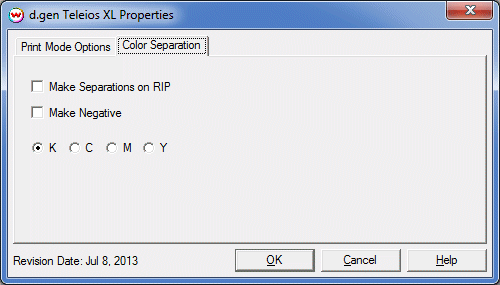

Color Separations:

The color separations controls are located on the second tab.

Make Separations on RIP: This will cause the RIP to separate the image into CMYK plates.
Make Negative: This inverts monochrome images when printed.
K, C, M, Y: This allows you to print monochrome images to any of the printheads. This is especially useful to eliminate overuse of a single printhead when printing only monochrome.
