d.gen Papyrus 1880 G5 Help page

Feb 10, 2016

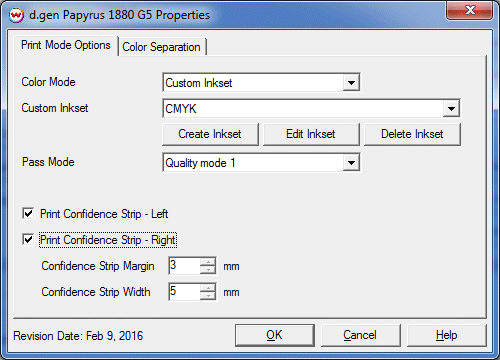

Print Mode Options:

To launch the printer properties for this driver, choose 'Setup' from the 'Print' menu, then click on the 'Edit' button, and then click on 'Properties'.

• Color Mode: Select the desired inkset.
• Custom Inkset: Select either a previously created custom inkset, from the drop-down menu, or choose the Starter Inkset to begin creating a new custom inkset.
• Create Inkset: Create a new custom inkset.
• Edit Inkset: Edit an existing custom inkset.
• Delete Inkset: Delete an existing custom inkset.
• Pass Mode: Select the desired pass mode and print resolution.
• Print Confidence Strip - Left: Select to print a confidence strip to the left of image data.
• Print Confidence Strip - Right: Select to print a confidence strip to the right of image data.
• Confidence Strip Margin: Specify the white space between confidence strip and print data in mm.
• Confidence Strip Width: Specify the width of each color channel strip in mm.

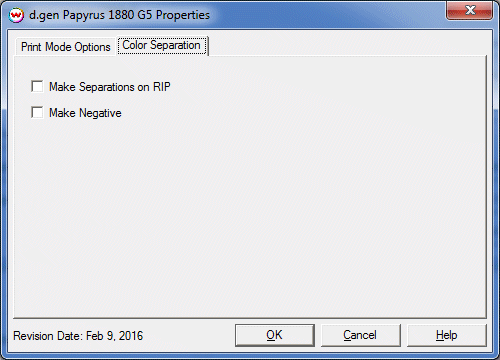

Color Separations:

The color separations controls are located on the second tab.

The Color Separations controls are the same as those of other printers, and are only available if a monochrome mode has been selected on the Print Mode tab.

• Make Separations on RIP: This will cause the RIP to separate the image into CMYK plates.
• Make Negative: This inverts monochrome images when printed.
