d.gen Teleios G5 1880 / 3200 / Arachne G5 1880

Dec 21, 2015

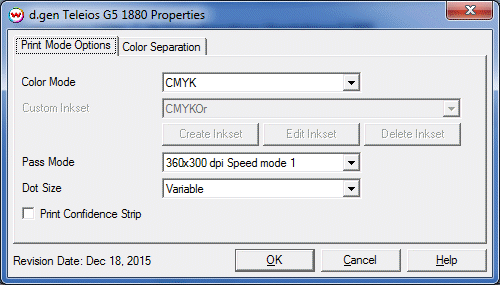

Print Mode Options:

To launch the printer properties for this driver, choose 'Setup' from the 'Print' menu, then click on the 'Edit' button, and then click on 'Properties'.

• Color Mode: Select the desired inkset.
• Custom Inkset: Select the correct inkset, create, edit, and or delete inksets.
• Pass Mode: Select the desired resolution.
• Dot Size: Select the dot type, Variable or Fixed.
• Print Confidence Strip: Enable printing of confidence strip at the left edge of media.

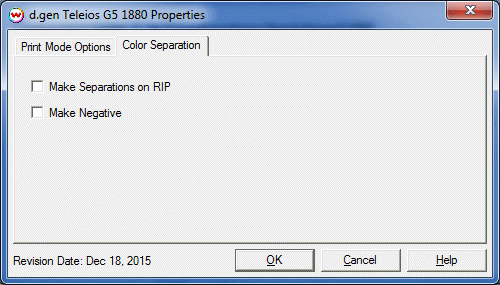

Color Separations:

The color separations controls are located on the second tab.

The Color Separations controls are the same as those of other printers, and are only available if a monochrome mode has been selected on the Print Mode tab.

• Make Separations on RIP: This will cause the RIP to separate the image into CMYK plates.
• Make Negative: This inverts monochrome images when printed.
