d.gen Teleios Grande H12 Help

September 13, 2018

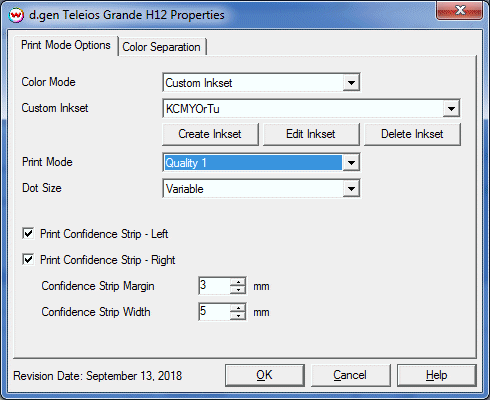

Print Mode Options:

To launch the printer properties for this driver, choose 'Setup' from the 'Print' menu, then click on the 'Edit' button, and then click on 'Properties'.

• Color Mode: Select the desired inkset.
• Inkset: When Custom Inkset is selected in Color Mode, the following controls are available:
• Create Inkset: Create a new custom inkset.
• Edit Inkset: Edit an existing custom inkset.
• Delete Inkset: Delete an existing custom inkset.
• Print Mode: Select the desired pass mode.
• Dot Size: Select the dot type, Variable or Fixed, and size.
• Print Confidence Strip - Left/Right: Enable printing of confidence strip at the left edge, right edge, or both.
• Confidence Strip Margin: Set the margin between the confidence strip and the edge of the image.
• Confidence Strip Width: Set the width of each channel in the confidence strip.

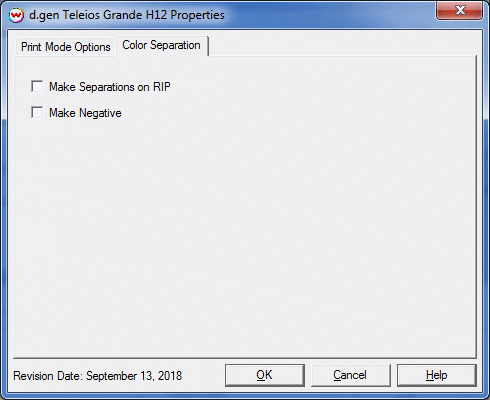

Color Separations:

The color separations controls are located on the second tab.

The Color Separations controls are the same as those of other printers, and are only available if a monochrome mode has been selected on the Print Mode tab.

• Make Separations on RIP: This will cause the RIP to separate the image into CMYK plates.
• Make Negative: This inverts monochrome images when printed.
