DGI Sweet Box Help

November 20, 2019

Printer Properties:

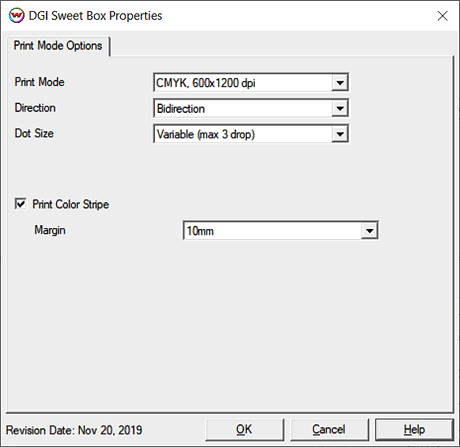

If you click on the Properties button next to the Printer Model window in the Imaging Configuration screen, the following control panel for this printer will be displayed:

The Printer Mode Options tab has the following settings.

Print Mode: Select the resolution for printing.
Direction: Head will print in one direction (Unidirectional) for the best quality or print in both directions (Bidirectional) to achieve a higher speed.
Dot Size: Choose to print with a single fixed dot (Small, Medium, Large) or with a variable dot.
Print Color Stripe: Select whether or not to print a color stripe along the edge of the image.

Margin: Select the distance between the color stripe and the printed image.

Destination Folder: Specify where to save the output files. Only available when the physical connection is set to RTL File Unit.

For further information on the setup and operation of this device, please consult your user's manual.
