DGI FD PRO II

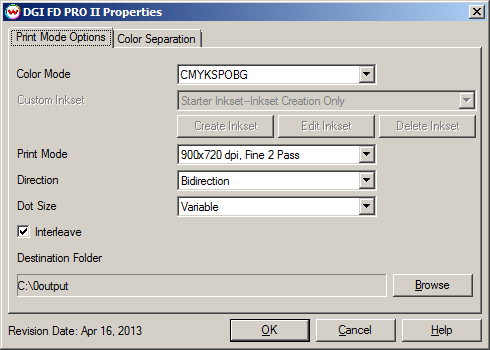

Print Mode Options:

Pressing the Properties button next to the Printer Model window on the Imaging Configurations screen will launch the control panel for this printer.

This page allows you to select from the following parameters:

• Color Mode: Choose which inkset to use for printing.
• Custom Inkset: Select a previously created custom inkset to use for printing.
  • Create Inkset: Create a new custom inkset.
  • Edit Inkset: Edit an existing custom inkset.
  • Delete Inkset: Delete an existing custom inkset.
• Print Mode: Select the resolution, quality mode, and pass count to use for printing.
• Direction: Select either Unidirection or Bidirection printing.
• Dot Size: Choose to use Variable dot or Fixed dot during printing.
• Interleave: Check to enable the interleave printing option.
• Destination Folder: Set the directory that the output will be saved in.

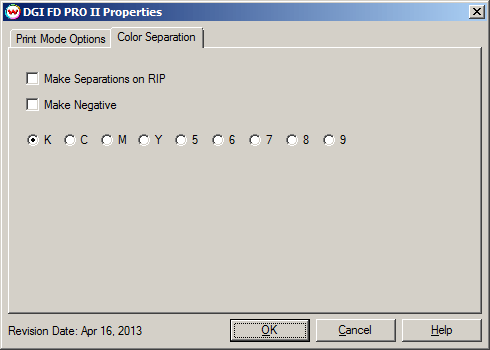

Color Separation:

• Make Separations on RIP: This will cause the RIP to separate the image into CMYK plates.
• Make Negative: This inverts monochrome images when printed.
• K, C, M, Y, 5, 6, 7, 8, 9: This allows you to print monochrome images to any of the printheads. This is especially useful to eliminate overuse of a single printhead when printing only monochrome.
