DGI FT-1604X Help

June 29, 2017

Printer Properties:

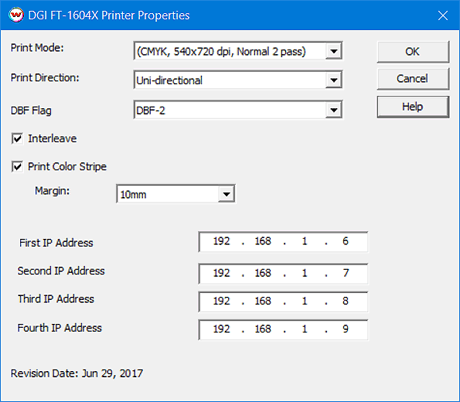

If you click on the Properties button next to the Printer Model window in the Imaging Configuration screen, the following control panel for this printer will be displayed:

This page allows you to select from the following parameters:

• Print Mode: Select the desired print mode (Inkset, resolution, and quality).
• Print Direction: Print in one direction and with the best quality (Uni-directional) or print in both directions with a higher speed (Bi-directional).
• DBF Flag: Select the DBF setting to use during printing.
• Interleave: Check option box to use interleave when printing.
• Print Color Stripe: Select whether or not to print a color stripe along the edge of the image or media.
• Margin: Select the distance between the color stripe and the printed image.
• First IP Address: Enter the first network IP address for the printer.
• Second IP Address: Enter the second network IP address for the printer.
• Third IP Address: Enter the third network IP address for the printer.
• Fourth IP Address: Enter the fourth network IP address for the printer.
• Note: All four IP addresses must be entered to be able to communicate with the printer.
