DGI FT-1604XR Help

March 10, 2016

Printer Properties:

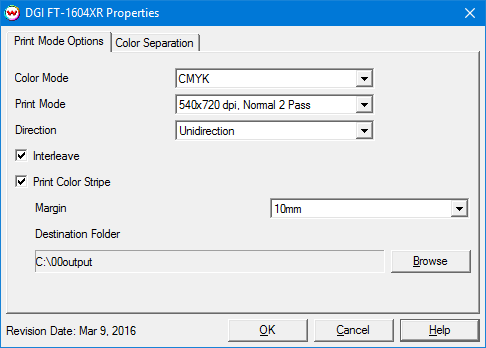

If you click on the Properties button next to the Printer Model window in the Imaging Configuration screen, the following control panel for this printer will be displayed:

• Color Mode: Select to use either the CMYK or Mono inkset during printing.
• Print Mode: Choose the desired resolution for printing.
• Direction: Print in Unidirection for the best quality or in Bidirection for higher speed.
• Interleave: Select to make the Interleave function active. May help to reduce banding issues.
• Print Color Stripe: Check to enable printing the color stripes along edge of media.
  • Margin: Set the distance between the color stripe and the image.
• Destination Folder: Specify where to save the output files.

For further information on the setup and operation of this device, please consult your user's manual.

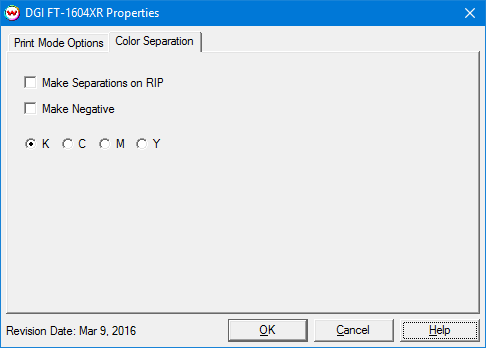

Color Separation:

The Color Separations controls are the same as other printers and only available when a monochrome mode has been selected on the Print Mode Options tab.

• Make Separations on RIP: This will cause the RIP to separate the image into CMYK plates.
• Make Negative: This inverts the monochrome images when printed.
• K, C, M, Y: Select the ink channel to use for printing.
