DGI FT-1608, FT-1908, VE-1908 Printers

September 15, 2017

Printer Properties:

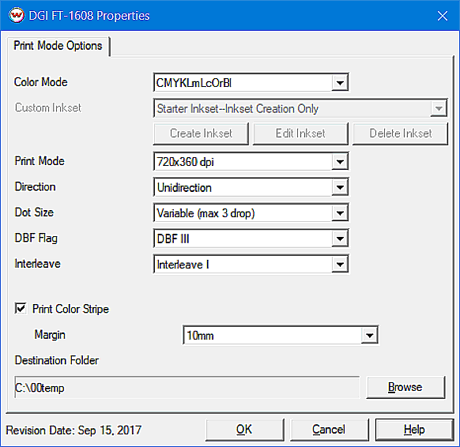

If you click on the Properties button next to the Printer Model window in the Imaging Configuration screen, the following control panel for this printer will be displayed:

• Color Mode: Select the inset to use when printing.
• Custom Inkset: When the 'Color Mode' control, above, is set to Custom Inkset the following controls are available.
• Create Inkset: Create a new inkset.
• Edit Inkset: Edit an existing inkset.
• Delete Inkset: Delete an existing inkset.
• Print Mode: Select the resolution for printing.
• Direction: Print in one direction and with the best quality (Unidirectional) or print in both directions with a higher speed (Bidirectional).
• Dot Size: Choose to print with a fixed dot or variable dot.
• DBF Flag: Select either Off, DBF I, or DBF II, or DBF II to use during printing.
• Interleave: Select either Off, Interleave I, or Interleave II to use during printing.
• Print Color Stripe: Select whether or not to print a color stripe along the edge of the image or media.
• Margin: Select the distance between the color stripe and the printed image.
• Destination Folder: Specify where to save the output files. Available when the physical connection is set to RTL File Unit.

For further information on the setup and operation of this device, please consult your user's manual.
