DGI FT-1904XR Help Page

Print Mode Options:

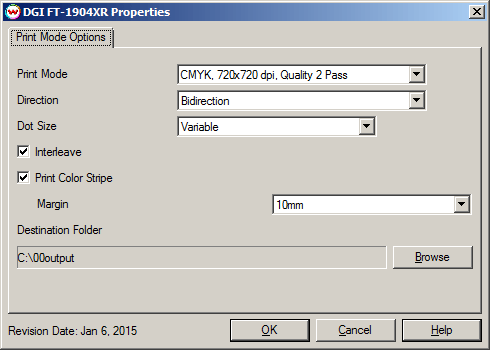

Pressing the Properties button next to the Printer Model window on the Imaging Configurations screen will launch the control panel for this printer.

This page allows you to select from the following parameters:

• Print Mode: Select the resolution and pass count to use for printing.
• Direction: Select to print in Unidirection for the best quality, or in Bidirection for higher speed.
• Dot Size: Choose to print with either Variable or Fixed dot.
• Interleave: Check to use interleave printing. Enabling this option may help with some banding issues.
• Print Color Stripe: Select whether or not to print a color stripe along the edge of the image or media.
• Margin: Select the distance between the color stripe and the printed image.
• Destination Folder: Set the directory that the output file will be saved in.
