DGI HS FT Help

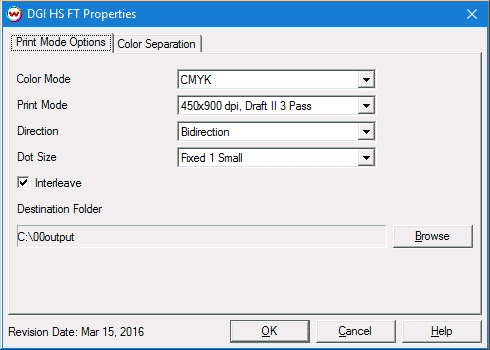

Print Mode Options:

Pressing the Properties button next to the Printer Model window on the Imaging Configurations screen will launch the control panel for this printer.

This page allows you to select from the following parameters:

• Color Mode: Choose which inkset to use for printing.
• Print Mode: Select the resolution, quality, and pass count to use for printing.
• Direction: Choose to print in Unidirection for the best quality, or in Bidirection for a higher speed.
• Dot Size: Select to use a Fixed Small, Medium, Large, or Variable dot type.
• Interleave: Check to enable interleave printing. Using this option may help with some banding issues.
• Destination Folder: Set the directory that the output file will be saved in.

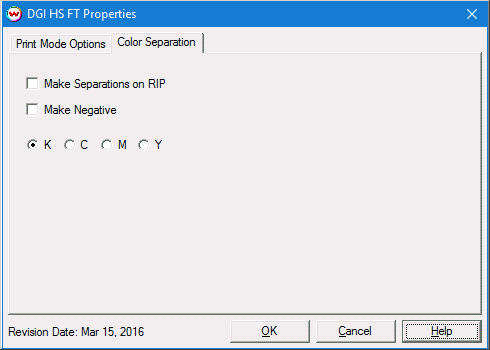

Color Separations:

The Color Separations controls are the same as those of other printers, and are only available when a monochrome mode has been selected on the Print Mode Options tab.

• Make Separations on RIP: This will cause the RIP to separate the image into CMYK plates.
• Make Negative: This inverts the monochrome images when printed.
• K, C, M, Y: Select the ink channel to use for printing.
