DGI FH-3204 / FH-3204SE / HS-FTIII Help
March 29, 2018
Printer Properties:

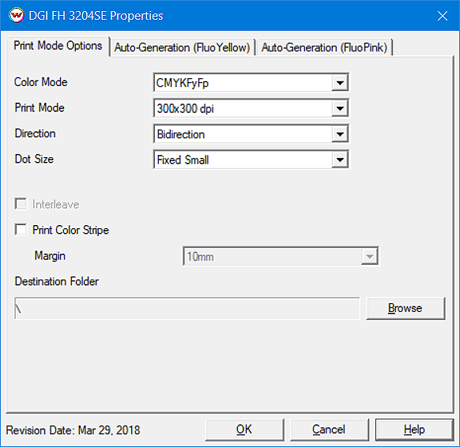

If you click on the Properties button next to the Printer Model window in the Imaging
Configuration screen, the following control panel for this printer will be displayed:
The Printer Mode Options tab has the following settings.
- Color Mode: Select either the CMYK, CMYKLcLm, or CMYKFyFp inkset to use for printing. Only CMYK is available on the FH-3204 model.
- Print Mode: Choose the resolution to use for printing.
- Direction: Print in one direction for the best quality (Unidirection) or print in both directions with a higher speed (Bidirection).
- Dot Size: Choose to print with a fixed dot (Small, Medium, or Large) or with a variable dot.
- Interleave: Select to use interleave during printing. Only available in 600x300, 600x600, 600x900, and 600x1200 print modes.
- Print Color Stripe: Select whether or not to print a color stripe along the edge of the image or media.
- Margin: Select the distance between the color stripe and the printed image.
- Destination Folder: Specify where to save the output files. Only available when the physical connection is set to RTL File Unit.
Auto-Generation:
Select the Auto-Generation tab to set the options for the Fluorescent Yellow and Fluorescent Pink.
Not available on the FH-3204 model.
This page allows you to select from the following parameters:
- No Auto-Generation: Fluorescent ink will not print unless specified through a spot color replacement.
- Auto-Generate inks from traced areas: The fluorescent ink will only be printed to the traced areas that have been set using the Trace tab on the main SoftRIP window.
- Auto-Generate the entire page: Prints the fluorescent ink behind the entire image.
- Auto-Generate where other inks are used: Prints the fluorescent ink on all non-zero pixels(marked areas). In addition, a "choke" or "spread" may be selected.
Note: A choke shrinks the fluorescent ink in relation to the printed area.
Note: A spread expands the fluorescent ink in relation to the printed area.
- Ink Density: Set percentage of ink to be used for the fluorescent ink. Can be set from 10% to 100%.
For further information on the setup and operation of this device, please consult your user's manual.
