Dilli Neo Mars 1604-WV / Neo Mercury L210 Help
January 19, 2012
Printer Properties:

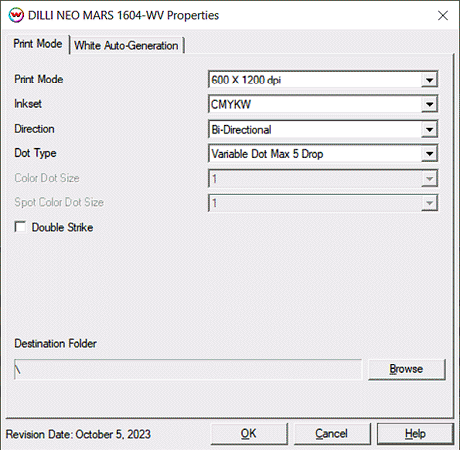

If you click on the Properties button next to the Printer Model window on the Imaging
Configuration screen, the following control panel will be displayed:
- Print Mode: Select the appropriate printing resolution.
- Inkset: Select the desired Inkset; CMYK, CMYKW, CMYKV, or CMYKWV.
- Direction: Select either Bi-directional or Uni-directional printing.
- Dot Type: Select between fixed or variable dot types.
- Color Dot Size: With a fixed Dot Type selected, the Dot Size can be set from 1-7.
- Spot Color Dot Size: With a fixed Dot Type selected, the Dot Size can be set from 1-7.
- Double Strike: Selecting this feature will double the amount of ink being layed down.
- Destination Folder: Specify the output folder location for the RTL files.

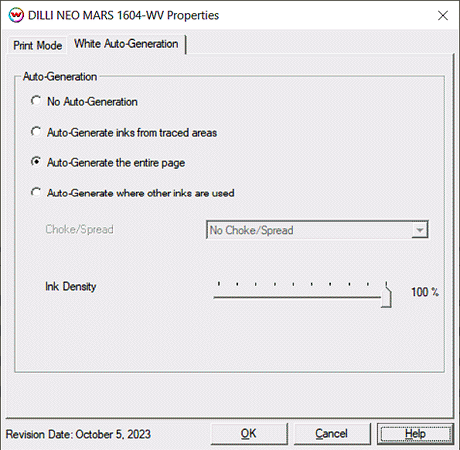

Auto-Generation Options:
The following page will be available when the Inkset includes either Varnish or White channels:
- No Auto-Generation: Generate white/varnish channels using spot color replacement.
- Auto-Generate inks from traced areas: The white/varnish channels will be applied only to the traced areas that have been set using the Trace tab in the main Softrip interface.
- Auto-Generate the entire page: Prints white/varnish behind the entire page.
- Auto-Generate where other inks are used: Prints white/varnish on all non-zero pixels (marked areas). In addition, a "choke" or "spread" may be selected.
Note: A choke shrinks the white/varnish plate in relation to the printed area.
Note: A spread expands the white/varnish plate in relation to the printed area.
Ink Density: Controls the density percentage for the white/varnish channel. Value can range between 10% and 100%.
For further information on the setup and operation of this device, please consult your user's manual.
