FY Union Challenger FY-2306TX Help Page

September 12, 2011

Print Mode Options:

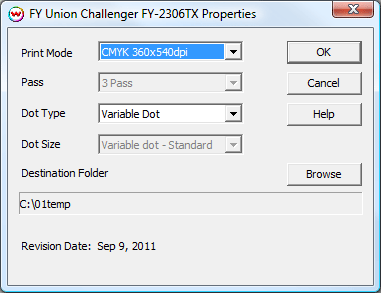

To launch the printer properties for this driver, choose 'Setup' from the 'Print' menu then click on the 'Edit' button, and then click on 'Properties'.

• Print Mode: Select the desired inkset and printing resolution.
• Pass Count: Select the number of passes for the current print mode.
• Dot Type: Select either fixed or variable dot.
• Dot Size: Select the dot size for the selected dot type.
• Destination Folder: This control specifies the location for output files.
