FY Union Challenger FY-3208GS

June 29, 2011

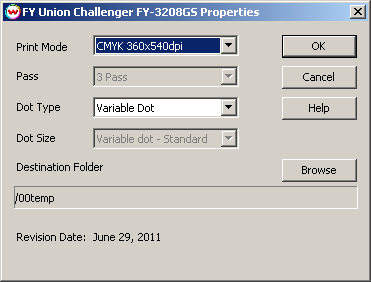

If you click on the Properties button next to the Printer Model window on the Imaging Configuration screen, the following control panel for this printer will be displayed:

The Printer Properties window has settings for Print Mode, Passes, Dot Type, Dot Size, and Destination Folder.

Print Mode: Select the inkset and printing resolution.
Pass: Select the number of passes.
Dot Type: Select from Fixed or Variable dot types.
Dot Size: Select the size of dot when using a 'Fixed Dot' Dot Type.
Destination Folder: Select the folder you would like the output files to be saved in.
