Gongzheng GZT320UVS/GZT500UVS Help Page
March 10, 2016

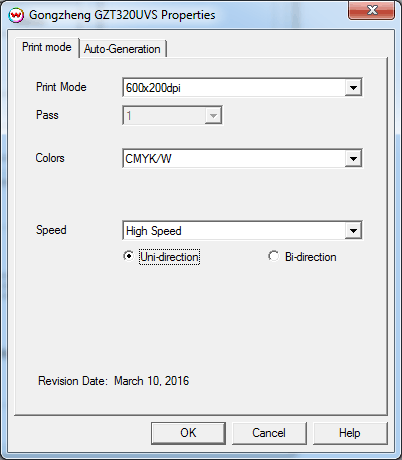

Print Mode:
Pressing the Properties button next to the Printer Model window on the
Imaging Configurations screen will launch a control panel for this printer.
Print Mode: Select printing resolution.
Pass: Select the number of passes, not available for all print modes.
Color: Select the ink mode desired for printing.
Speed: Select the desired speed of the printing process:
Print Direction: Print in one direction for the best quality (Uni-direction) or in both directions for higher speed (Bi-direction).

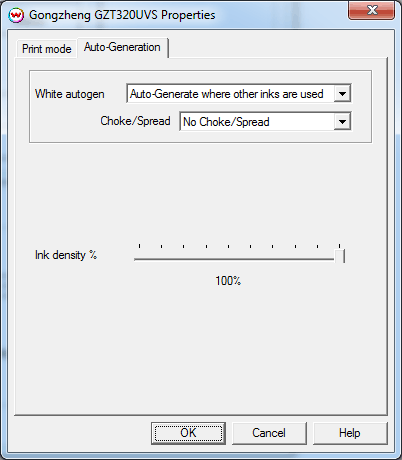

Auto-Generation Options:
The Auto-Generation tabs are available when an appropriate inkset has been set.
- No Auto-Generation: Unmanaged channel is not printed unless specified through spot color replacement or as an Alpha/Spot channel.
- Auto-Generate inks from traced areas: The unmanaged channel will be applied only to the traced areas that have been set using the Trace tab in the main Softrip interface.
- Auto-Generate the entire page: Prints the unmanaged channel behind the entire page.
- Auto-Generate where other inks are used: Prints the unmanged channel on all non-zero pixels (marked areas). In addition, a "choke" or "spread" may be selected.
Note: A choke shrinks the unmanaged channel plate in relation to the printed area.
Note: A spread expands the unmanaged channel in relation to the printed area.
- Ink Density: Controls the density percentage for the unmanaged channel.
