Gongzheng Polaris GZE3204 / GZE3206

February 17, 2015

Important notes and Instructions:

This driver only supports direct streaming to the printer using the Printer Manager software.
The USB device driver included with the Printer Manager software is currently only supported by Windows Vista and Windows 7.
There is a compatibility issue with the USB device driver in Windows 8 and above. Click here to learn more.
Both the Printer Manager software and SoftRIP must run in an Administrator level. To make sure they run at the Administrator level every time, once the Printer Manager software has been installed, do the following:
- From the Windows Desktop, right-click on the newly created Printer Manager shortcut and select Properties.
- Click on the Compatibility tab and in 'Privilege Level' section, put a check in the box for 'Run this program as an administrator'.
- Click OK to save the changes.
- Create a desktop shortcut for SoftRIP.
- Right-click on the SoftRIP desktop shortcut and select Properties.
- Click on the Compatibility tab and in 'Privilege Level' section, put a check in the box for 'Run this program as an administrator'.
- Click OK to save the changes.

Use the newly created desktop shortcut to launch SoftRIP to insure running in administrator level.

Once the Printer Manager software has been installed, plug in the printer and allow Windows to install the printer USB driver. Then launch the Printer Manager software so that SoftRIP can stream data to the printer.

Note on support of this printer:

Please note that color reproduction is controlled by ICC color profiles, and not by the Wasatch software.
We were not able to get this printer in our lab, and therefore have not been able create color profiles.
You should contact your dealer for support with ICC color profiles, or arrange to produce your own.
Because of the lack of access to this printer, Wasatch's service department cannot provide the same level of support that we provide for most other printers.
Please rely on your dealer for support of this device.

Print Mode:

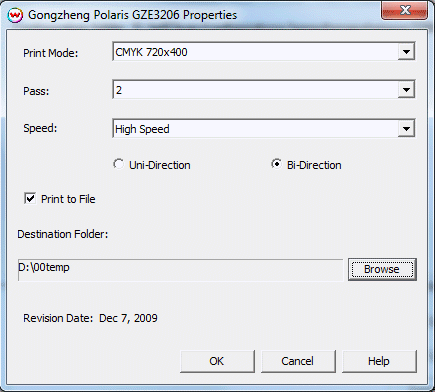

To launch the printer properties for this driver, choose 'Setup' from the 'Print' menu then click on the 'Edit' button, and then click on 'Properties'.

This page of the Properties control panel allows you to select a print mode, the print direction, and number of passes.

Print Mode: Select the printing resolution and Inkset.
Pass: Select the number of passes
Uni-Direction/Bi-Direction: Select either Uni or Bi-directional printing.
Destination Folder: Select the location for output files to be created.
