IPI Cube-260UV/W

September 5, 2006

Support for the IPI Cube-260UV/W driver is available as an optional add-on for Wasatch

Important Notes:

• Remember that color reproduction is controlled by ICC color profiles, and not by Wasatch software. We have not been able to get these printers into our lab, and therefore we have not been able create any color profiles for them. You should contact your dealer for further support with ICC color profiles, or arrange to produce your own.
• Because of lack of access to this printer, Wasatch's service department cannot provide the same level of support that we provide for most other printers. Please rely on your dealer for support of this device.

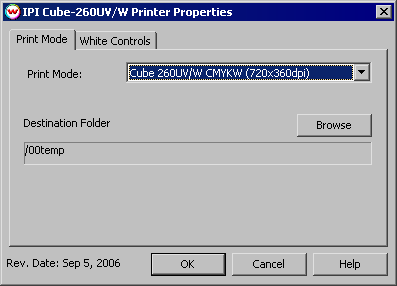

Print Mode:

Pressing the Properties button next to the Printer Model window on the Imaging Configurations screen will launch a control panel for this printer.

This page of the properties sheet allows you to select a print mode and destination folder for your output files.

• Print Mode: Select the ink type and printing resolution. This will generally match the inkset that is installed in the printer
• Destination Folder: Browse to the folder you would like the output files to be saved in

---

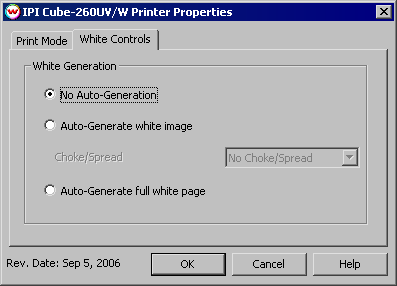

White Ink Control:

This page of the properties sheet allows you to control the white ink generation.

White Generation:

• No Auto-Generation: Use this setting when placement of white ink is already defined and no auto-generation is required.
• Auto-Generate white image: White ink is placed at any point that is not CMYK 0,0,0,0. Further adjustments can be made to the size of the plate generated by choosing a choke or spread setting.
• Auto-Generate full white page: Generates a white plate for the whole print. White will be printed everywhere.
