JHF KM1016
June 10, 2014
Support for the JHF KM1016 is available as an optional add-on for Wasatch
Color reproduction is controlled by ICC color profiles, and not by Wasatch software. We have not been able to get this printer into our lab, and therefore we have not been able to create any color profiles for them. You should contact your dealer for further support with ICC color profiles, or arrange to produce your own.
Because of lack of access to this printer, Wasatch's service department cannot provide the same level of support that we provide for most other printers. Please rely on your dealer for support of this device.

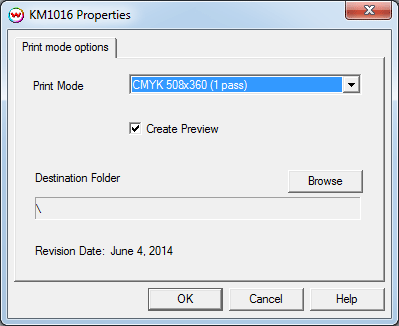

Print Mode Options:
Pressing the Properties button next to the Printer Model window on the Imaging Configurations screen will launch a control panel for this printer.
This Properties control panel allows you to select the print mode, enable white ink, and set the destination folder.
- Print Mode: Select the printing resolution, inkset, and pass count.
- Create Preview: Select if a BMP (bitmap) preview image is created.
- Destination Folder: Select the destination folder for the output file.

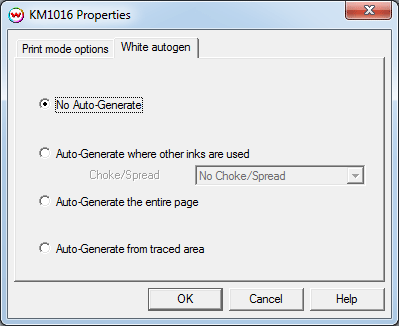

White Autogen:
The White autogen options allows the adjustment of the white ink channel for Print Modes with white ink.
- No Auto-Generate: White is not printed unless specified through spot color replacement.
- Auto-Generate where other inks are used: Prints white on all non-zero pixels (marked areas). In addition, a "choke" or "spread" may be selected.
Note: A choke shrinks the white plate in relation to the printed area.
Note: A spread expands the white plate in relation to the printed area.
- Auto-Generate the entire page: Prints white on the entire image.
- Auto-Generate from traced areas: The unmanaged color will be applied only to the traced areas that have been set using the Trace tab in the main Softrip interface.
