Micolor WJ1545B / 1645 / 1818 / 1845 / 2645
June 29, 2011
Important Notes:
To use this print driver, an additional registration code is required.
Remember that color reproduction is controlled by ICC color profiles, and not by Wasatch software. We have not been able to get these printers into our lab, and therefore we have not been able to create any color profiles for them. You should contact your dealer for further support with ICC color profiles, or arrange to produce your own.
Because of lack of access to these printers, Wasatch's service department cannot provide the same level of support that we provide for most other printers. Please rely on your dealer for support of this device.
Print Mode:

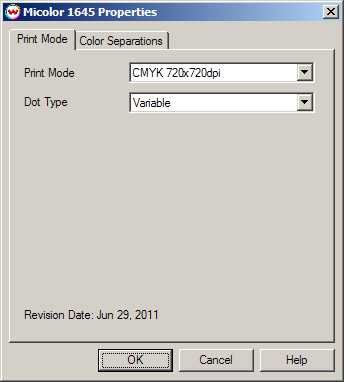

Pressing the Properties button next to the Printer Model window on the
Imaging Configurations screen will launch a control panel for this printer.
This page of the properties sheet allows you to select a print mode and the dot size.
- Print Mode: Select the appropriate inkset and printing resolution.
- Dot Type: Select either Small, Medium, Large, or Variable dot type.
Color Separations:

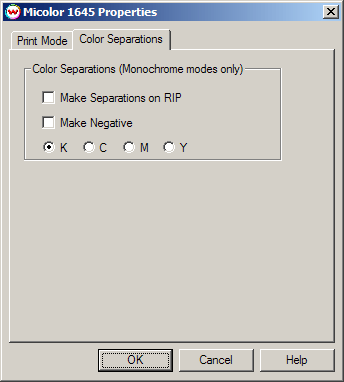

When you click on Color Separations, the following Properties page will be displayed:
Color Separations
The Color Separations controls become active when a Monochrome mode is selected.
- Make Separations on RIP: This will cause the RIP to separate the image into CMYK plates.
- Make Negative: This inverts monochrome images when printed.
- KCMY: This allows you to print monochrome images to any of the printheads. This is especially useful to eliminate overuse of a single printhead when printing only monochrome.
