Mimaki UJV100-160 Help

March 14, 2023

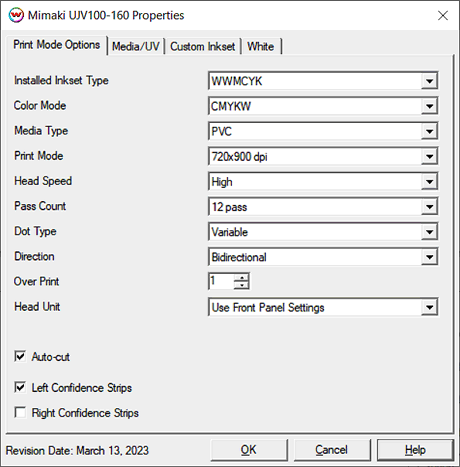

Print Mode Options:

To launch the printer properties for this driver, choose 'Setup' from the 'Print' menu, then click on the 'Edit' button, and then click on 'Properties'.

• Installed Inkset Type: Select the the inkset that has been selected on the printer.
• Color Mode: Select the inkset to use for printing.
• Media Type: Select the type of media loaded on the printer. Different settings are available depending on how this control is set.
• Print Mode: Choose the resolution.
• Head Speed: Controls the 'High Speed' option available in certain resolutions.
• Pass Count: Allows you to specify the number of passes the head will make over a particular line. A higher pass count has a better quality but a slower print speed.
• Dot Type: Select the dot type: Fixed Dot or Variable Dot.
• Direction: Print in both directions (bi) or one direction (uni).
• Over Print: Prints over the printed area the selected number of times. For example, if 2 is selected, the amount of ink laid down is doubled. The maximum value is 9.
• Head Unit: This control toggles between which print heads to use to print ink.
• Auto-cut: If enabled, this control will cut the print after printing.
• Confidence Strips: Enable the printing of confidence strips on one or both sides of the print.

Media / UV:

• Use Printer Front Panel UV controls: When selected the UV controls will be controlled by the printer settings. Otherwise, set the UV level for the light manually. Percentage values range from 1-100.
• Drying Time Per Pass: Specify dry time between each pass. (in 1/10 seconds)
• Drying Time After Print: Specify dry time after printing is complete. (in seconds)

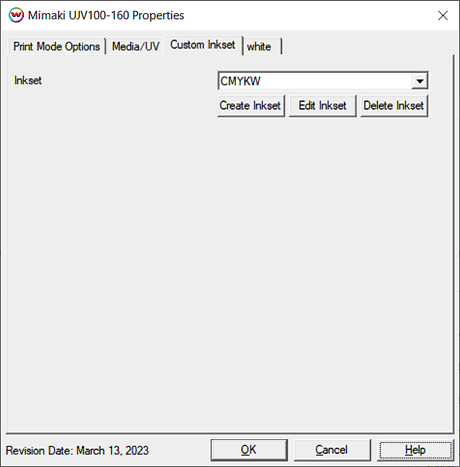

Custom Inkset

When the 'Color Mode' is set to 'Custom Inkset', you can setup the custom inkset here.

For more information on creating custom inksets and using the Passes control, click here.

Auto-Generation

• Information about the Auto-Generation options can be found HERE
