Wasatch Online Proofing Help

February 11, 2021

The Online Proofing driver creates and transmits proofs through email. All email service is managed automatically in the Wasatch Cloud.

You can specify recipient email addresses in the printer properties page, or at the time that you send each email. An email will be sent every time you print with this driver.

Color matching in an online proof is controlled by ICC color profiles. For views on computer screens, the standard sRGB profile is a common choice of output profile, but other choices are easy with SoftRIP's open color management. A default Imaging Configuration that uses the sRGB ICC profile is provided for download from the Wasatch Cloud.

To launch the properties for Online Proofing, first select Wasatch Online Proofing in the 'Printer Model' control on the 'Setup' menu, then click the 'Edit' button, and then the 'Properties' button.

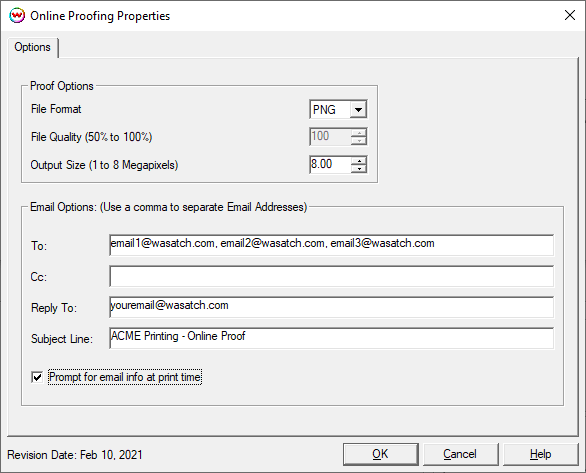

Illustration 1: Wasatch Online Proofing properties page

File Format: You can select either JPG or PNG as the type of image that will be emailed.

File Quality: The quality of a JPG can be modified to produce smaller image files. The control ranges from 50% to 100%.

Output Size: Allows you to specify the size of file that you want to produce, and Wasatch SoftRIP will automatically adjust it's resolution to produce that size, regardless of the original page size. The size of the image proof ranges from 1 to 8 Megapixels. Larger sizes may take longer to email.

To* and Cc: Enter in email addresses separated by commas. Example: email@wasatch.com, email2@wasatch.com, email3@wasatch.com

Reply To*: Enter the email address that you would like your recipients to reply to.

Subject Line: Enter the subject line of the email to be sent. This is a good place to put your company name or other identifiers so that the email can easily be recognized by your recipients.

Prompt for email info at print time: This option will launch a separate window every time a print spooler is launched. See below for more information about the prompt.

* Required field. These can be entered either in the printer properties window or at print time if 'Prompt for email info at print time' is checked.

Illustration 2: Select Internet Deployment in the Printer Model Window

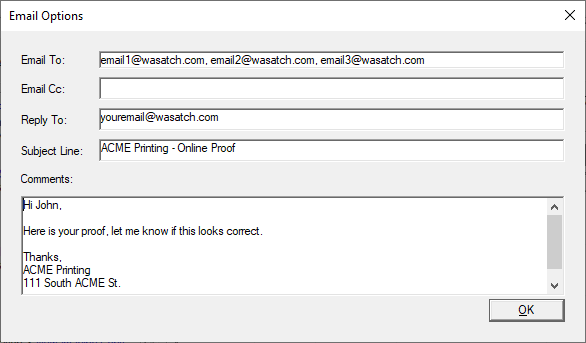

The "Email Options" prompt will appear if you have "Prompt for email info at print time" checked in the properties page. With this, you can modify the destination for each proof that is sent.

To* and Cc: Enter in email addresses separated by commas. Example: email@wasatch.com, email2@wasatch.com, email3@wasatch.com
Reply To*: Enter the email address that you would like your recipients to reply to.
Subject Line: Enter the subject line of the email to be sent. This is a good place to put your company name or other identifiers so that the email can easily be recognized by your recipients.
Comments: Allows you to send custom information along with the image proof.

* Required field. These can be entered either in the printer properties window or at print time if 'Prompt for email info at print time' is checked.
