DILLI NEOVENUS 2506

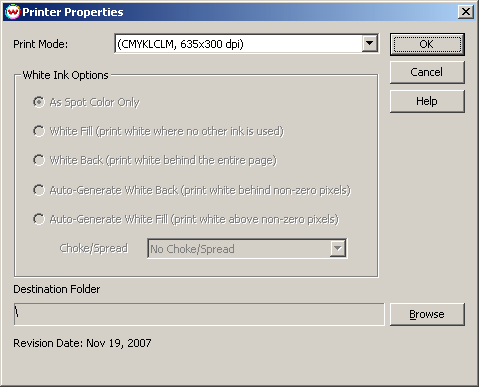

Pressing the Properties button next to the Printer Model window on the Imaging Configurations screen will launch the control panel for this printer.

This page allows you to select from the following parameters:

• Print Mode: Choose print mode. This includes the resolution and inkset.
• White Ink Options: Only available when selected Print Mode is CMYKLCLMW.
  • As Spot Color Only: White is not printed unless specified through spot color replacement or as marked on the 5th plate in a 5 color file.
  • White Fill: Print white where no other ink is used. Places white only in unmarked surface areas of the image.
  • White Back: Print white behind entire image. White is printed under marked and unmarked surfaces.
  • Auto-Generate White Back: Print white behind non-zero pixels. Prints white under marked areas only.
  • Auto-Generate White Fill: This option prints a full white plate covering the full imageable area. In addition, a "choke" or "spread" may be selected. A choke shrinks the white plate in relation to the imageable area printed underneath. A spread expands the white plate in relation to the imageable area printed underneath. Used for transparent substrates where the image is viewed from the opposite side of the substrate the image is printed on.
• Destination Folder: Select the folder you would like the output files to be saved in.
