Roland Hi-Fi Jet Pro - FJ400 / FJ500 / FJ600

The Roland Hi-Fi Jet Pro (FJ 400/FJ 500/FJ 600) with "V8" variable drop printing combines orange and green inks, dilute cyan and magenta inks, and variable dot capability all in one package. This creates an exceptionally large number of "reasonable" print modes. The list below shows those that are part of our current release of support for this printer.

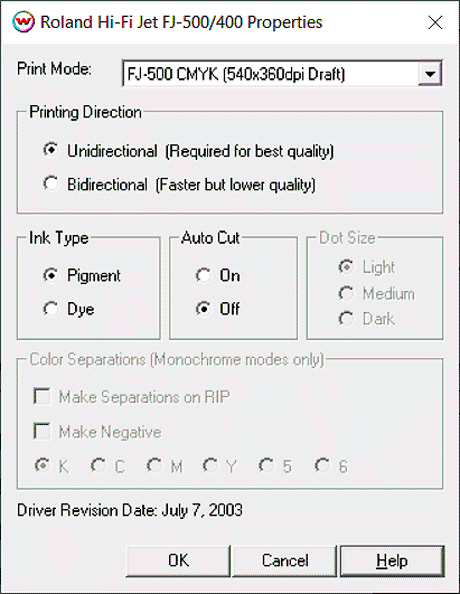

Pressing the Properties button next to the Printer Model window on the Imaging Configurations screen will launch a control panel for this printer. Print Mode: In general, only one or two modes will be suitable for any particular combination of ink and paper.

Roland FJ-500 CMYK (540x360dpi Draft)

Roland FJ-500 CMYK (720dpi Normal)

Roland FJ-500 CMYK (1080dpi Super)

Roland FJ-500 CMYK (540x1080dpi vNormal-Fixed)

Roland FJ-500 CMYK (720x1440dpi vSuper-Fixed)

Roland FJ-500 CMYK (1440dpi vPhoto-Fixed)

Roland FJ-500 LCLM (540x360dpi Draft)

Roland FJ-500 LCLM (720dpi Normal)

Roland FJ-500 LCLM (1080dpi Super)

Roland FJ-500 ORGR (540x360dpi Draft)

Roland FJ-500 ORGR (720dpi Normal)

Roland FJ-500 ORGR (1080dpi Super)

Roland FJ-500 LCLMORGR (540x360dpi Draft)

Roland FJ-500 LCLMORGR (720dpi Normal)

Roland FJ-500 LCLMORGR (1080dpi Super)

Roland FJ-500 CMYK (540x1080dpi vNormal)

Roland FJ-500 CMYK (720x1440dpi vSuper)

Roland FJ-500 CMYK (1440dpi vPhoto)

Roland FJ-500 LCLM (540x1080dpi vNormal)

Roland FJ-500 LCLM (720x1440dpi vSuper)

Roland FJ-500 LCLM (1440dpi vPhoto)

Roland FJ-500 LCLMORGR (540x1080dpi vNormal)

Roland FJ-500 LCLMORGR (720x1440dpi vSuper)

Roland FJ-500 LCLMORGR (1440dpi vPhoto)

Roland FJ-500 (monochrome 540x360 dpi Draft)

Roland FJ-500 (monochrome 720dpi Normal)

Roland FJ-500 (monochrome 1080dpi Super)

Roland FJ-500 (monochrome 1440dpi vPhoto-Fixed)

Inclusion of the "v" in the mode name ( vPhoto, vSuper, vNormal ) indicates a variable dot mode. These variable dot modes use a smaller dot than the non "v" modes. The modes marked "-Fixed" use variable dots as a fixed-dot mode. For these modes, you can select between three dot sizes-- light, medium, and dark.

To make use of dual ink set modes on the printer, you must select the correct set of inks when you first install the ink cartridges. According to the Roland User's Manual, the following selections are available:

PIGMENT 8 COLOR: Pigment ink (orange, green, light cyan, light magenta, black, cyan, magenta, and yellow)

PIGMENT 4 COLOR: Pigment ink (two sets of black, cyan, magenta, and yellow)

DYE 4 COLOR: Dye-base ink (two sets of black, cyan, magenta, and yellow)

PIGMENT & DYE 4: Dye-based ink (black, cyan, magenta, and yellow) and pigment ink (black, cyan, magenta, and yellow)

For the first three modes, it is not necessary to specify any settings inside of Wasatch SoftRIP. However, for the Pigment/Dye dual inkset mode, you must select the "Ink Type" above to select that ink set in the printer. (If you do not have both pigment and dye inks installed in the printer, this selection is irrelevant.)
