Robustelli MonnaLisa

October 2, 2008

Support for the Robustelli Monna Lisa HiFi is available as an optional add-on for Wasatch

Important Notes:

Remember that color reproduction is controlled by ICC color profiles, and not by Wasatch software.
We have not been able to get this printer into our lab, and therefore have not been able create any color profiles for them.
You should contact your dealer for further support with ICC color profiles, or arrange to produce your own.
Because of lack of access to this printer, Wasatch's service department cannot provide the same level of support that we provide for most other printers.
Please rely on your dealer for support of this device.

Usage for the Robustelli Monna Lisa HiFi:

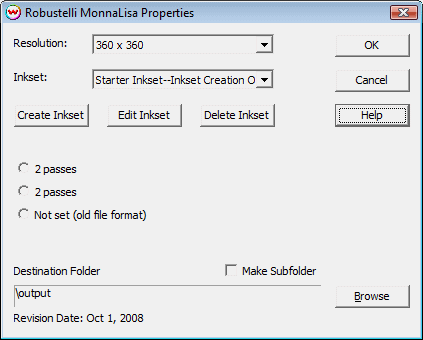

Clicking the 'Properties' button for any of these drivers will launch a window similar to the following screen:

Selecting the "Custom Inkset" option from the Print Mode enables the ability to select custom inksets. For information on creating Custom Inksets, please reference this help page.

Resolution: Choose resolution.
Create Inkset: Create a new inkset with a colorimeter.
Edit Inkset: Edit an existing inkset.
Delete Inkset: Delete an existing inkset.
Passes: Set the number of Passes.
Destination Folder: Allows you to select the folder you would like the output files to be saved in.
Make Subfolder: Save each job to a new sub folder under the Destination Folder

The following settings must be set the same as on the printer.

Double Passes: Doubles the number of passes for better quality.
Extra Quality: This setting must match the printers settings.
Bidirectional: Checking this box causes the printer to operate in bidirectional mode.
