Robustelli MonnaLisa MK2 Help

November 10, 2016

Important Notes:

• Remember that color reproduction is controlled by ICC color profiles, and not by Wasatch software.
• We have not been able to get this printer into our lab, and therefore have not been able create any color profiles for them.
• You should contact your dealer for further support with ICC color profiles, or arrange to produce your own.
• Because of lack of access to this printer, Wasatch's service department cannot provide the same level of support that we provide for most other printers.
• Please rely on your dealer for support of this device.

Printer Properties:

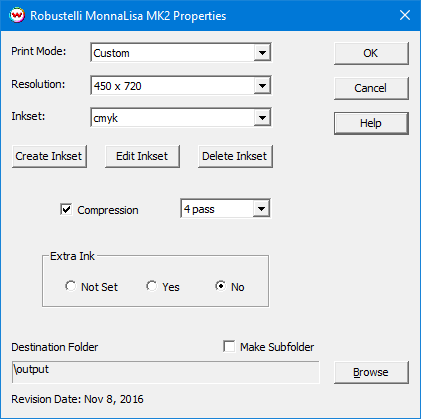

To change the printer properties of this driver, choose 'Setup' from the 'Print' menu, then select the Robustelli MonnaLisa Mk2 in the 'Printer Model' list, click on the 'Edit' button, and then click on 'Properties'.

• Print Mode: Choose whether to use a Custom inkset or a Dual CMYK inkset.
• Resolution: Select the resolution for printing.
• Inkset: Select a previously created Custom inkset. Option not available with the Dual CMYK print mode.
  • Create Inkset: Create a new inkset.
  • Edit Inkset: Edit an existing inkset.
  • Delete Inkset: Delete an existing inkset.
• Compression: Enables file compression on the output files. Note that by selecting this option, passes cannot be selected at time of printing.
• Passes: Set the number of passes. If the higher pass count for each resolution is selected, the printer must be set to 'Double Passes'. This control is only available when using the 'Compression' option.
• Extra Ink: Choose whether extra ink will be added to the amount of ink used during printing. Choices are 'Not Set', 'Yes', or 'No'.
• Destination Folder: Allows you to select the folder you would like the output files to be saved in.
  • Note: Because the output file will always be named the same as the original source file, repeated printing of the same job will overwrite all previous attempts of outputting that same job.
• Make Subfolder: Save each job to a sub-folder inside the Destination Folder.
