TexTalk TS1816/TS3200 Printers Help page
May 17, 2013
Support for the TexTalk TS1816/TS3200 printers are available as an optional add-on for Wasatch
Please note that color reproduction is controlled by ICC color profiles, and not by Wasatch software. We have not been able to get these printers into our lab, and therefore we have not been able create any color profiles for them. You should contact your dealer for further support with ICC color profiles, or arrange to produce your own.
Because of lack of access to this printer, Wasatch's service department cannot provide the same level of support that we provide for most other printers. Please rely on your dealer for support of this device.
Print Mode:

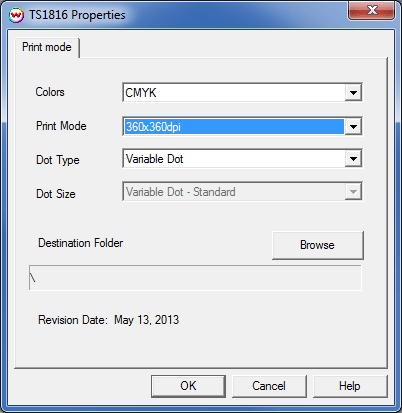

Pressing the Properties button next to the Printer Model window on the Imaging Configurations screen will launch a control panel for this printer.
The Properties control panel allows you to select the inkset, print mode, dot type and size, and set the destination folder when using the 'PRN File Unit' connection.
- Colors: Select the inkset to use.
- Print Mode: Choose resolution and ink sets.
- Dot Type: Select the dot type, Fixed or Variable.
- Dot Size: Various dot sizes can be selected. Not all dot sizes are available for every resolution.
- Destination Folder: Select the destination folder for the output file.

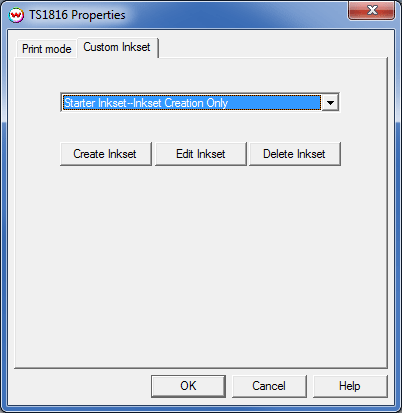

Custom Inkset
The Custom Inkset tab allows a custom inkset to setup and selected when the 'Colors' control is set to 'Custom inkset'.
- Inkset: Setup or select a custom inkset.
- Create Inkset: Create a new inkset.
- Edit Inkset: Edit the currently selected inkset.
- Delete Inkset: Delete the selected inkset.
