Velox 3200 Help

Important notes and Instructions

• This driver supports 'Direct Streaming' to the printer using the Printer Manager software.
• The Printer Manager software must be installed prior to printing.
  The print manager software can be downloaded here:        Download
• Both the Printer Manager software and SoftRIP must run in an Administrator level. To make sure they run at the Administrator level every time, once the Printer Manager software has been installed, do the following:
  • From the Windows Desktop, right-click on the newly created Printer Manager shortcut and select Properties.
  • Click on the Compatibility tab and in 'Privilege Level' section, put a check in the box for 'Run this program as an administrator'.
  • Click OK to save the changes.
  • Create a desktop shortcut for SoftRIP.
  • Right-click on the SoftRIP desktop shortcut and select Properties.
  • Click on the Compatibility tab and in 'Privilege Level' section, put a check in the box for 'Run this program as an administrator'.
  • Click OK to save the changes.

Once the Printer Manager software has been installed, plug in the printer and allow Windows to install the printer USB driver. Then launch the Printer Manager software so that SoftRIP can stream data to the printer.

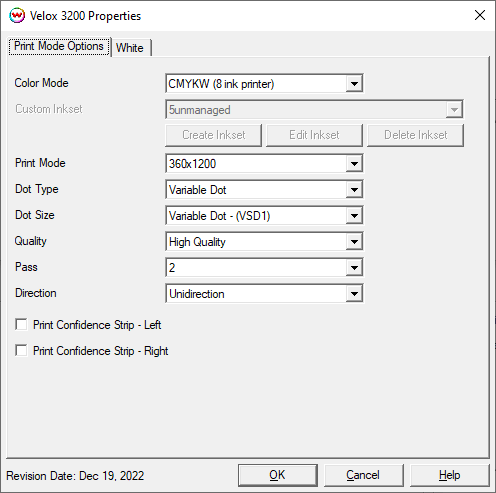

Print Mode Options

• Color Mode: Choose inkset to print with. Options are CMYK, CMYKW, CMYKRGBVW, CMYKFyFoFpFgW, CMYKRBFpFyW, or choose to create a Custom Inkset. When Custom Inkset is selected, the following controls are available:
• Custom Inkset: When Custom Inkset is selected in Color Mode, the following controls are available:
• Create Inkset: Create a new custom inkset.
• Edit Inkset: Edit an existing custom inkset.
• Delete Inkset: Delete an existing custom inkset.

NOTE: For more information on creating custom inksets, click here.


• Print Mode: Select the printing resolution. Options are: 720x600, 720x1200, 720x1800, 720x2400, and 720x3600.
• Dot Type: Select either Fixed Dot or Variable Dot printing.
• Dot Size: Choose the dot size for printing.
• Quality: Choose to print using high quality or high speed.
• Pass: Select the number of passes for the selected Print Mode. Option is only available when using specific Print Modes.
• Direction: Choose to print in unidirectional (one direction) or bidirectional (both directions).
• Print Confidence Strip (Left / Right): Enable to have a thin vertical strip of each color channel printed down the side of the print. Left and/or right strips can be enabled.

Auto-Generation

• Information about the Auto-Generation options can be found HERE
