Wit-Color Ultra9000 (4C)
August 19, 2011
Support for the Wit-Color Ultra9000 (4C) is available as an optional add-on for Wasatch
Remember that color reproduction is controlled by ICC color profiles, and not by Wasatch software. We have not been able to get these printers into our lab, and therefore we have not been able create any color profiles for them. You should contact your dealer for further support with ICC color profiles, or arrange to produce your own.
Because of lack of access to this printer, Wasatch's service department cannot provide the same level of support that we provide for most other printers. Please rely on your dealer for support of this device.
Print Mode Options:

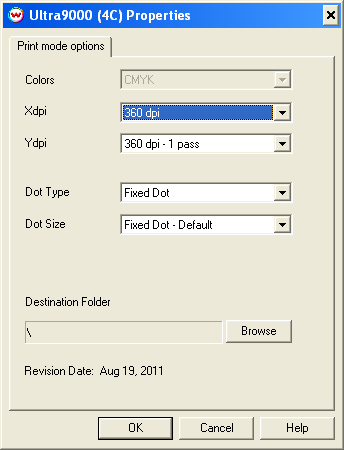

Pressing the Properties button next to the Printer Model window on the Imaging Configurations screen will launch a control panel for this printer.
This Properties control panel allows you to select the print mode, dot type, dot size, and set the destination folder.
- Color: Displays the inkset being used.
- Xdpi: Select the X-axis printing resolution.
- Ydpi: Select the Y-axis printing resolution.
- Dot Type: Select from Fixed or Variable dot types.
- Dot Size: This control allows you to select the dot size that will be used when the 'Dot Type' is set to 'Fixed Dot'.
- Destination Folder: This allows you to set the output folder for the driver when the 'Physical Connection' is set to print to file.
