Xenons 6407 Help page

December 5, 2012

Support for the Xenons 6407 is available as an optional add-on for Wasatch

Please note that color reproduction is controlled by ICC color profiles, and not by Wasatch software. We have not been able to get these printers into our lab, and therefore we have not been able create any color profiles for them. You should contact your dealer for further support with ICC color profiles, or arrange to produce your own.

Because of lack of access to this printer, Wasatch's service department cannot provide the same level of support that we provide for most other printers. Please rely on your dealer for support of this device.

Print Mode:

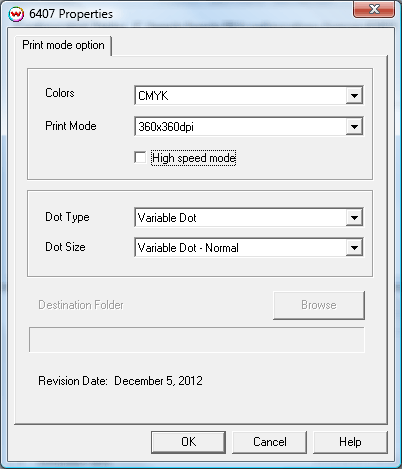

Pressing the Properties button next to the Printer Model window on the Imaging Configurations screen will launch a control panel for this printer.

This Properties control panel allows you to select the print mode and inkset, dot type, and size.

Color: Choose the inkset.
Print Mode: Choose the Resolution.
High Speed Mode: Choose to enable High Speed Mode.
Dot Type: Select the dot type, Fixed or Variable.
Dot Size: Various dot sizes can be selected. Not all dot sizes are available for every resolution.
Destination Folder: Choose the location of where the output files will be placed.
