TCP/IP Printing (LPR/LPD) Services for Mac OS X 10.5

Mac OS X provides built in LPR support for native Mac OS X applications. This makes it very easy to setup and transfer files to Wasatch ImageNET. ImageNet does not support applications running under the Mac OS 9 compatibility mode. For instructions on setting up an LPR client under Mac OS 9 click here.

Installing the PPD

As of the March 6th, 2003 revision of Wasatch SoftRIP, All Macintosh PPDs will work correctly under Mac OS X. If you have a copy of March 6th or later, copy the files to the Macintosh hard drive.

• Copy the appropriate PPD file(s) for your printer from the SoftRIP Application CD-ROM to

  Library\Printers\PPDS\Contents\Resources\english.lproj

  NOTE: Instead of the word "english" you may see "en" or your native language i.e. "DEUTSCH" or "DE"

  These PPDs can be found on the SoftRIP Application CD-ROM in \PPDs\Mac. For example, if your printer is an Epson Stylus PRO 7600, you should copy the "epsn7600.ppd" file to your Macintosh from the CD.

  NOTE: If you have trouble placing PPDs into the folder, make sure you have proper permissions to do so.
  NOTE: Files must be copied before launching the Print & Fax Center, or they will not appear in the list.


Setup

Should you have any problems setting up LPR on the Macintosh, contact Wasatch Customer Service.

• Make sure your network services are running in SoftRIP by clicking on Server, then Wasatch ImageNET, and Write down your IP address as it is shown on the window for later entry. The number will appear in ###.###.###.### format

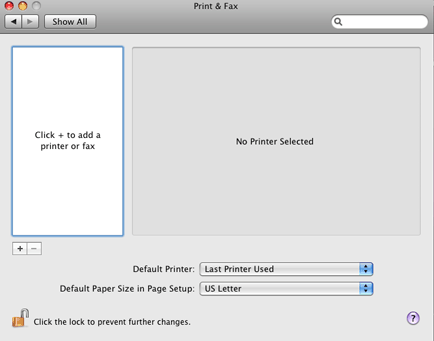

• Launch the Print & Fax Center which can be found in "System Preferences ..." under the icon.

• Click on the Add Printer Button

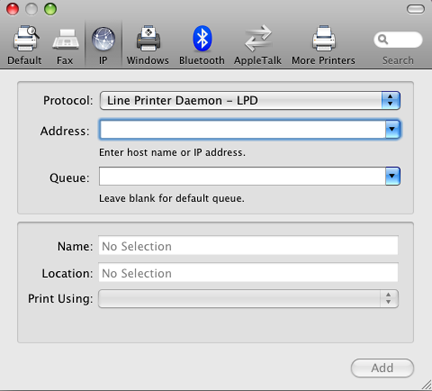

• Click on the icon that says IP

• Protocol: Make sure that the protocol selected is Line Printer Daemon - LPD
• Address: Enter the RIP station's IP address or domain name for Address, this is the IP address that you wrote down in step 1. Do not include :80
• Queue: you may enter 1, 2, 3, or 4, depending on which Unit's hot folder you want the files to be sent to. Queue names should specify that queue locations consisting of a number ONLY will be placed in the root of the hot folder. For sub folders, the unit number must be followed by a valid path name (ex 1/client A) To view your current configuration for Hot Folders in SoftRIP, go to Server and click on Hot Folders.

  Note: If left blank, all files will be placed into the C:\INCOMING folder.

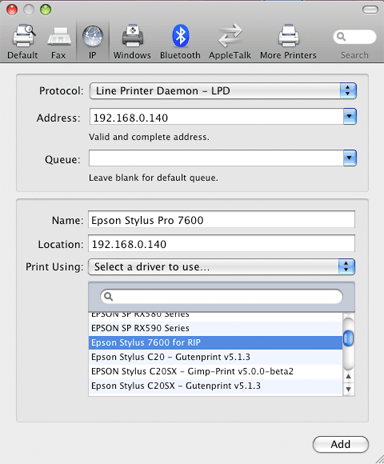

• Name: Defaults to IP Address, May be modified to display a printer name.
• Location: Defaults to Blank, May be modified to show IP Address.


• From the Print Using: drop down menu select "Select a driver to use...",   From the drop-down printer list, find and select the printer ppd that you installed above.

• Click on Add to add the printer to your list

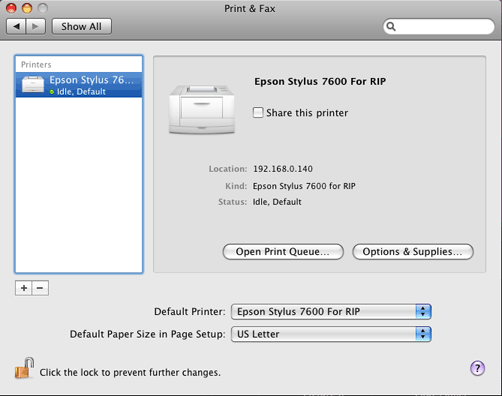

The LPD/LPR printer is now configured and may be used as any other MAC printer.
